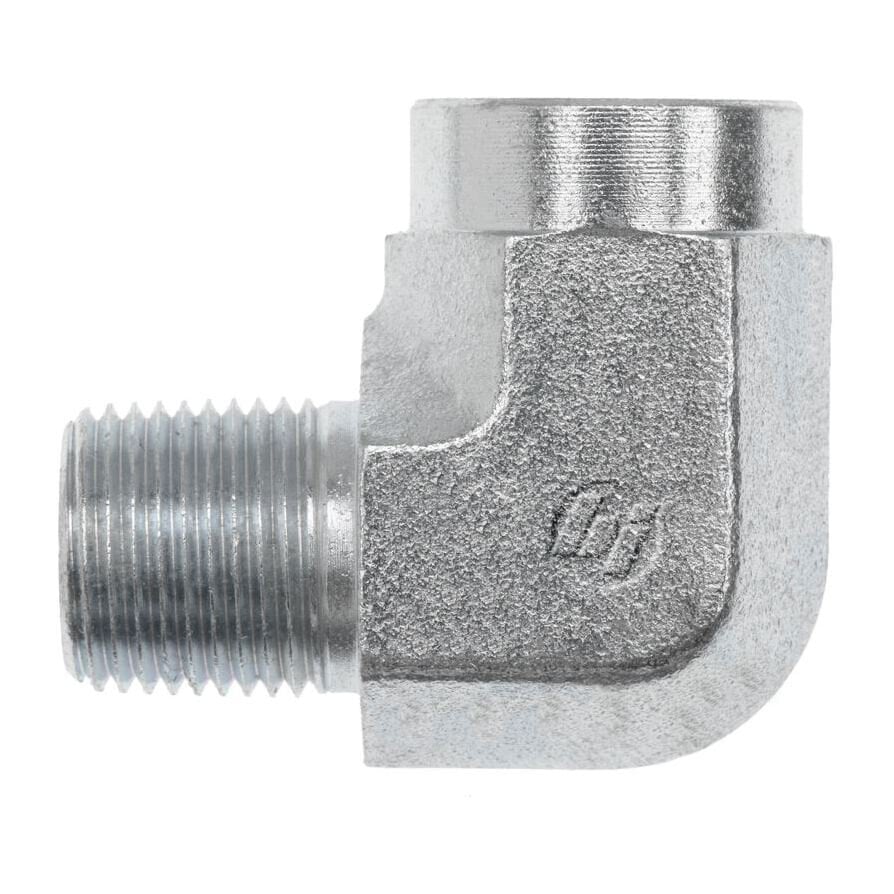

5502-04-06-FG (04MP-06FP 90° Street Elbow Fo...)
5502-04-06-FG (04MP-06FP 90° Street Elbow Fo...)
Regular price
$5.03 USD
Regular price
Sale price
$5.03 USD
Unit price
per
Couldn't load pickup availability

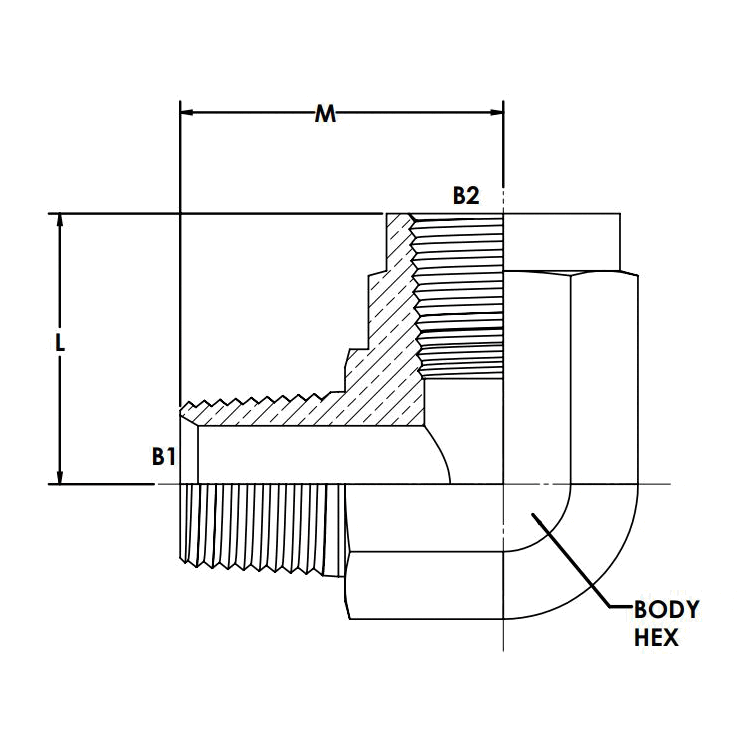

| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.875 |
| CENTERLINE LENGTH M | 1.22 |
| CENTERLINE LENGTH L | 1.02 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.225 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
