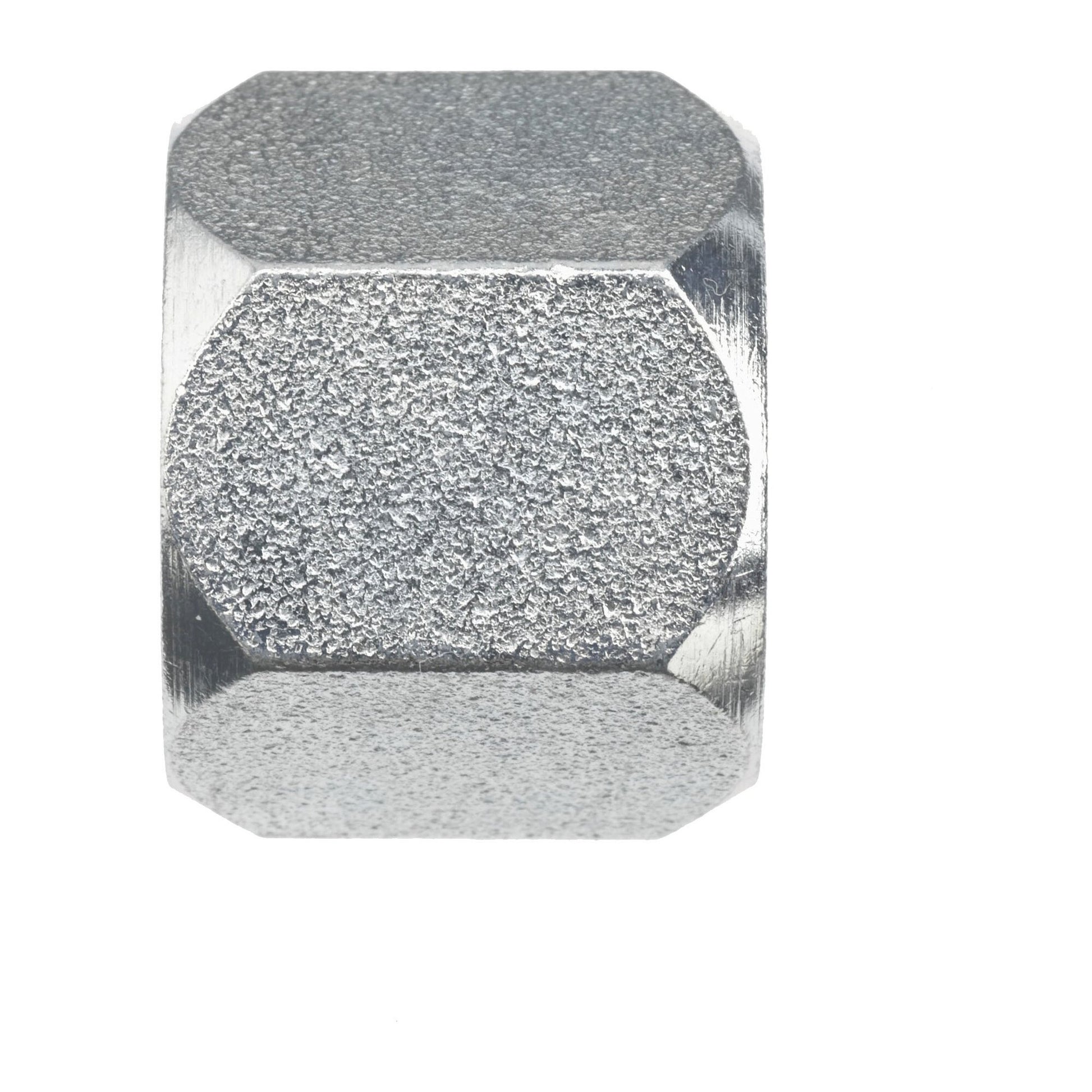

0304-C-08 (08 JIC Cap)
0304-C-08 (08 JIC Cap)
Regular price
$1.17 USD
Regular price
Sale price
$1.17 USD
Unit price
per
Couldn't load pickup availability

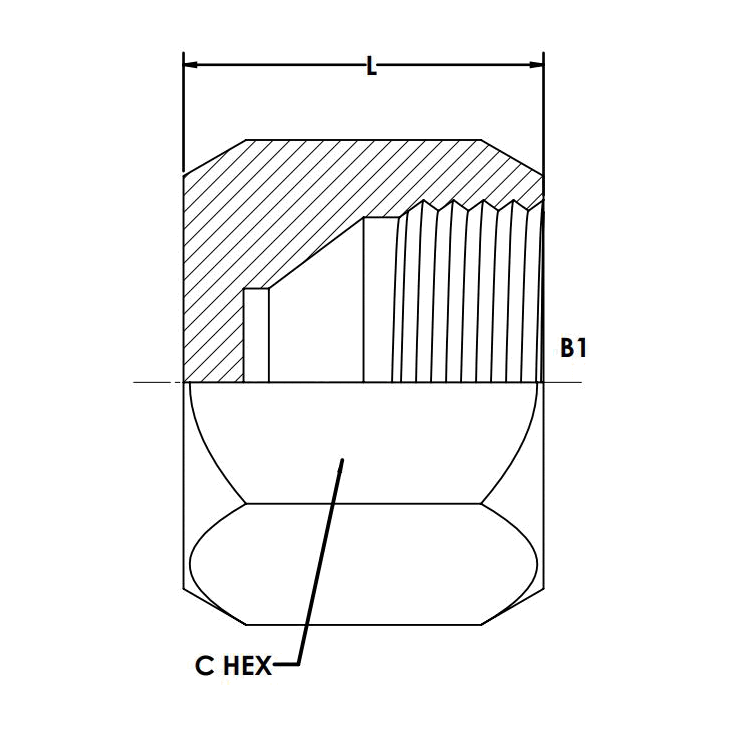

THREAD B1 TYPE FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 3/4-16
THREAD B1 SPECIFICATION SAE J514
BODY HEX 0.875
OVERALL LENGTH 1 0.75
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.080
MAXIMUM DYNAMIC PRESSURE (PSI) 6,000
