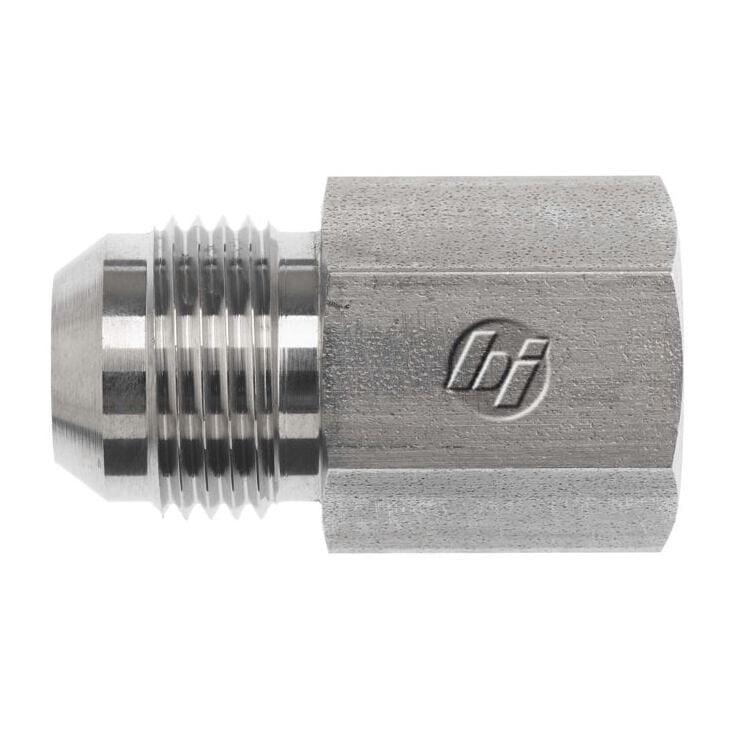

2405-12-12 (12MJ-12FP Straight)
2405-12-12 (12MJ-12FP Straight)
Regular price
$5.52 USD
Regular price
Sale price
$5.52 USD
Unit price
per
Couldn't load pickup availability

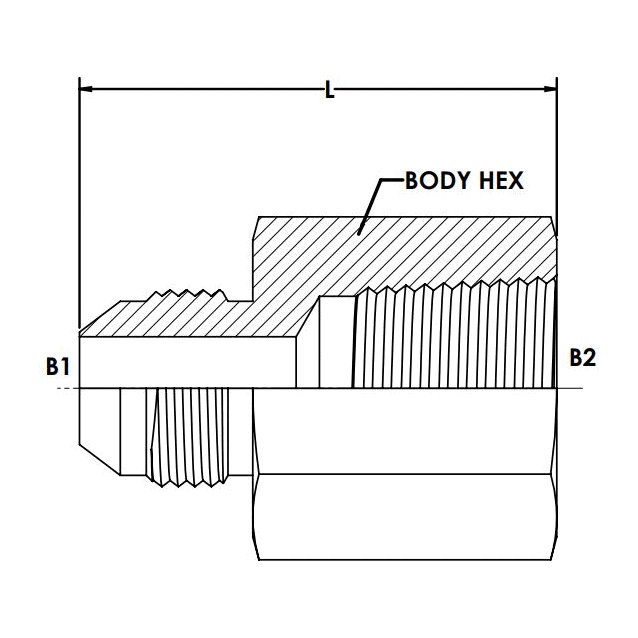

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.375 |
| OVERALL LENGTH 1 | 2.06 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.520 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 4,000 |
