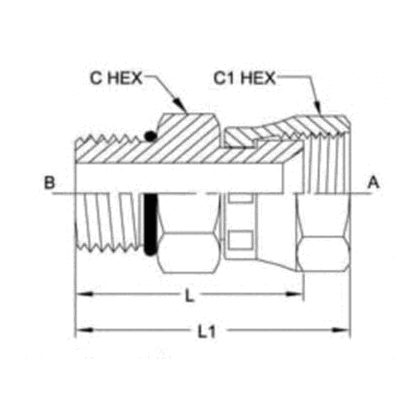

6402-12-12-O (12MORB-12FJS Straight)
6402-12-12-O (12MORB-12FJS Straight)
Regular price
$7.34 USD
Regular price
Sale price
$7.34 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD A1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD A1 SIZE | 1-1/16-12 |
| THREAD A1 DRILL | 0.609 |
| THREAD A1 SPECIFICATION | SAE J514 |
| BODY HEX | 1.250 |
| C HEX 1 | 1.250 |
| OVERALL LENGTH L1 | 2.14 |
| OVERALL LENGTH L | 1.58 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.40 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
