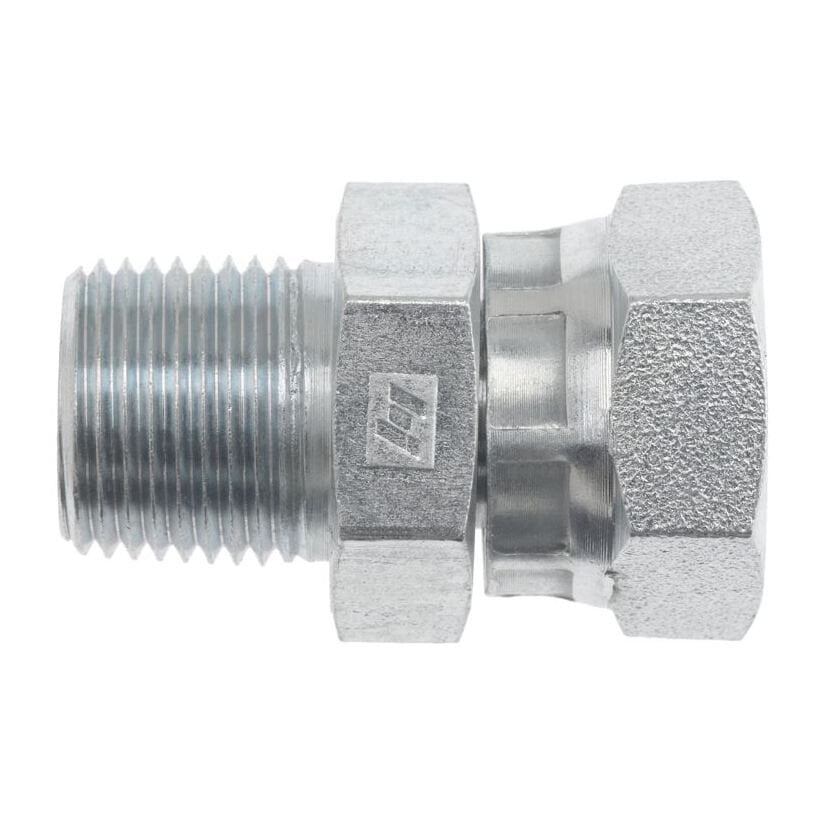

1404-12-12 (12MP-12FPS Straight)
1404-12-12 (12MP-12FPS Straight)
Regular price
$5.80 USD
Regular price
Sale price
$5.80 USD
Unit price
per
THREAD A1 TYPE MALE NPTF
THREAD A1 SIZE 3/4-14
THREAD A1 DRILL 0.719
THREAD A1 SPECIFICATION SAE J476

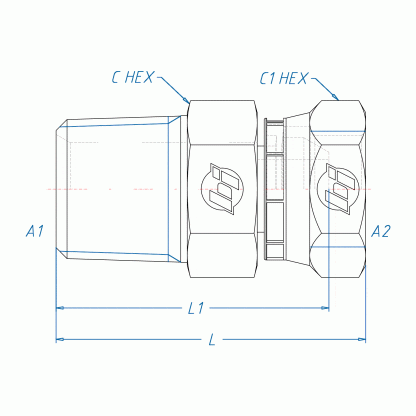

C HEX 1 1.250
OVERALL LENGTH L 2.08
OVERALL LENGTH L1 1.75
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.367
View full details
THREAD A1 SIZE 3/4-14
THREAD A1 DRILL 0.719
THREAD A1 SPECIFICATION SAE J476
THREAD A2 TYPE FEMALE NPSM SWIVEL
THREAD A2 SIZE 3/4-14
THREAD A2 DRILL 0.75
THREAD A2 SPECIFICATION SAE J514
BODY HEX 1.250C HEX 1 1.250
OVERALL LENGTH L 2.08
OVERALL LENGTH L1 1.75
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.367
MAXIMUM DYNAMIC PRESSURE (PSI) 3,000
