9011-04-04 (MALE JIC X MALE BSPT)
9011-04-04 (MALE JIC X MALE BSPT)
Regular price
$4.96 USD
Regular price
Sale price
$4.96 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/16 - 20 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| BSPT | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| R 1/4 - 19 | ISO 7-1 / DIN EN 10226-1 |

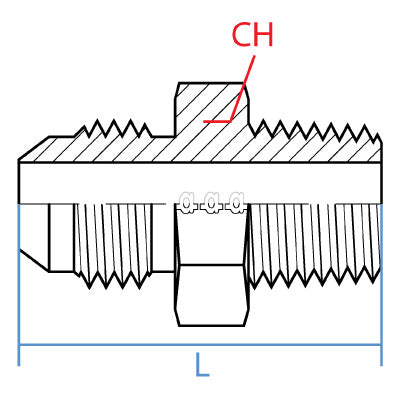

Dimensions
| L (Length) |
|---|
| 36.9mm |
| CH (Width) |
|---|
| 16mm |
