9605S-04-L06-12 (MJIC X MALE DIN 2353L (SEALED)
9605S-04-L06-12 (MJIC X MALE DIN 2353L (SEALED)
Regular price
$4.66 USD
Regular price
Sale price
$4.66 USD
Unit price
per
Couldn't load pickup availability
Specifications
| Side 1 | ||
|---|---|---|
| Type | Gender | Size |
| JIC | Male | 1/4" |
| Thread | Relevant Standard(s) |
|---|---|
| 7/16 - 20 UNF | SAE J514 / ISO 8434-2 |
| Side 2 | ||
|---|---|---|
| Type | Gender | Size |
| DIN TUBE | Male | L06 |
| Thread | Relevant Standard(s) |
|---|---|
| M12 X 1.5 | ISO 8434-1 / DIN 2353 |

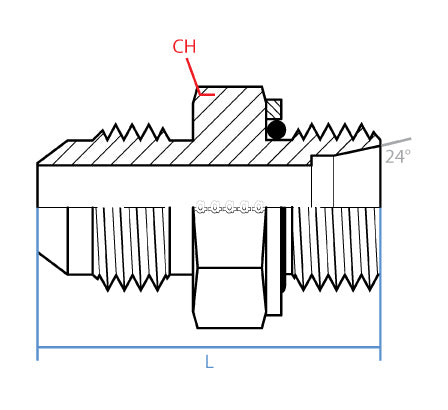

Dimensions
| L (Length) |
|---|
| 31.9mm |
| CH (Width) |
|---|
| 17mm |
