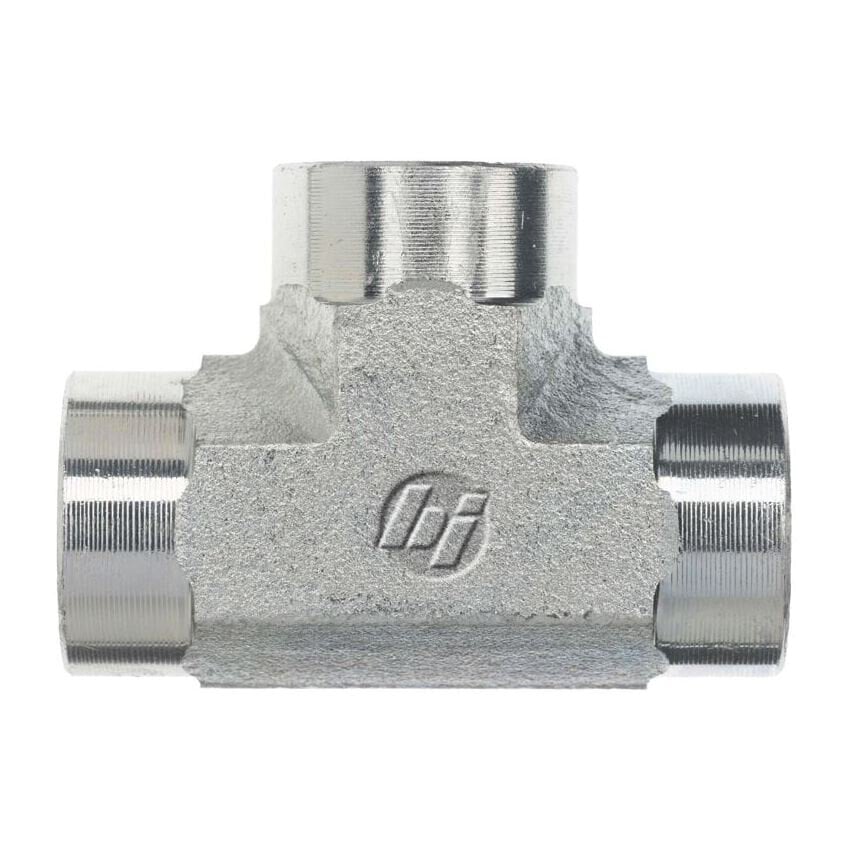

5605-02-02-02-FG (02FP-02FP-02FP Tee Forged)
5605-02-02-02-FG (02FP-02FP-02FP Tee Forged)
Regular price
$4.38 USD
Regular price
Sale price
$4.38 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | FEMALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD B3 TYPE | FEMALE NPTF |
| THREAD B3 SIZE | 1/8-27 |
| THREAD B3 SPECIFICATION | SAE J476 |

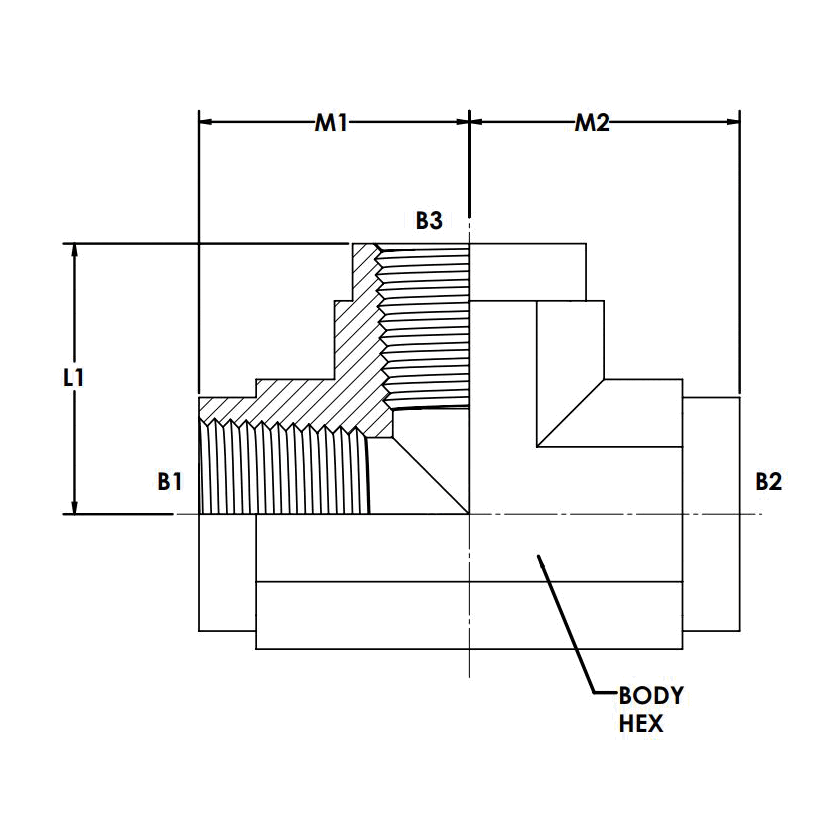

| BODY HEX | 0.562 |
| CENTERLINE LENGTH M1 | 0.66 |
| CENTERLINE LENGTH M2 | 0.66 |
| CENTERLINE LENGTH L1 | 0.66 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.082 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
