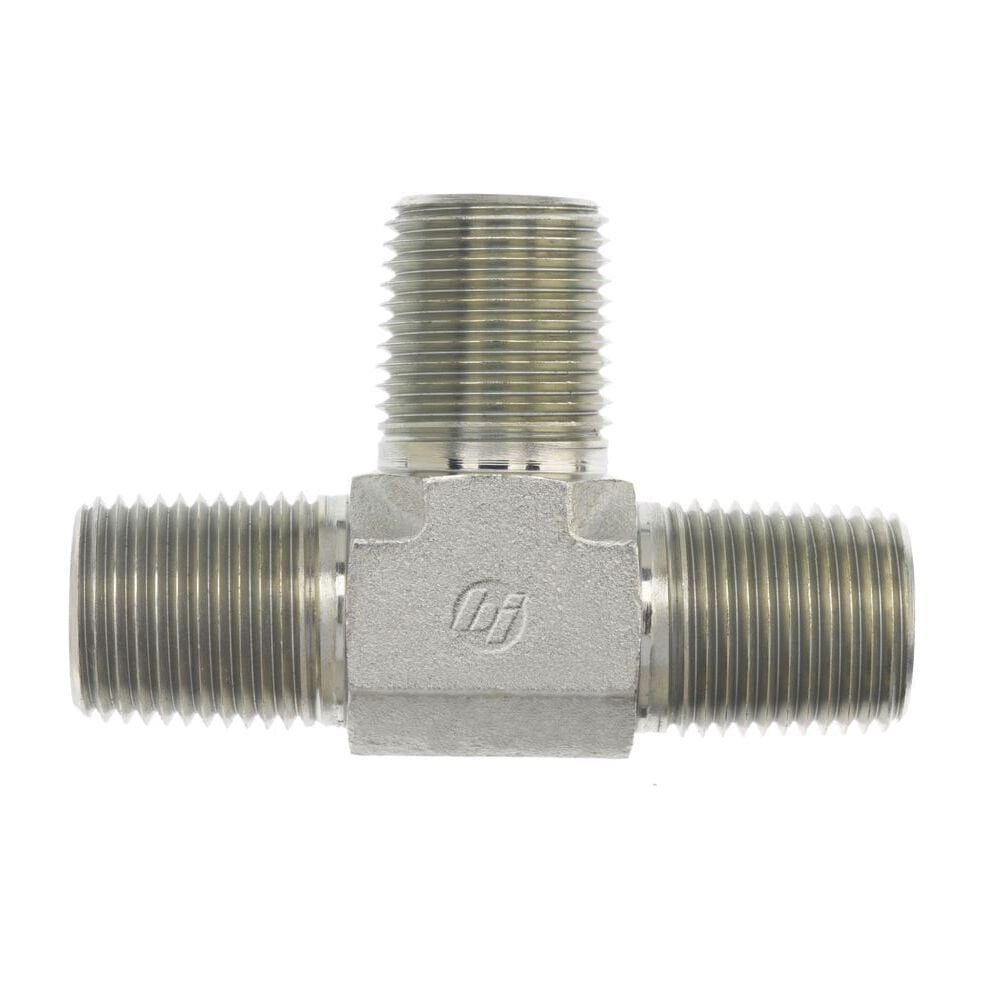

5600-02-02-02-FG (02MP-02MP-02MP Tee Forged)
5600-02-02-02-FG (02MP-02MP-02MP Tee Forged)
Regular price
$3.89 USD
Regular price
Sale price
$3.89 USD
Unit price
per
Couldn't load pickup availability

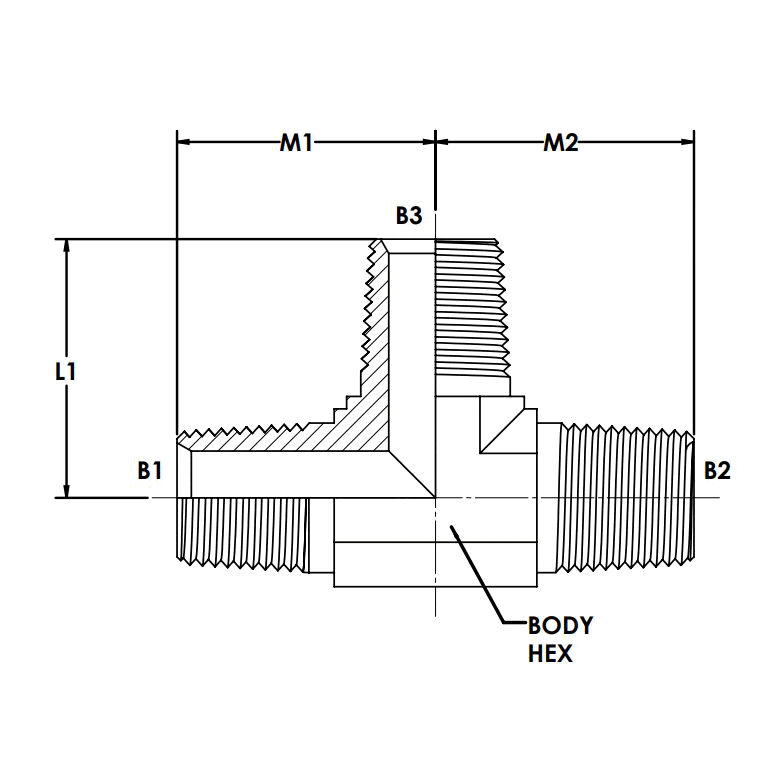

| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD B3 TYPE | MALE NPTF |
| THREAD B3 SIZE | 1/8-27 |
| THREAD B3 DRILL | 0.188 |
| THREAD B3 SPECIFICATION | SAE J476 |
| BODY HEX | 0.438 |
| CENTERLINE LENGTH M1 | 0.78 |
| CENTERLINE LENGTH M2 | 0.78 |
| CENTERLINE LENGTH L1 | 0.78 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.063 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
