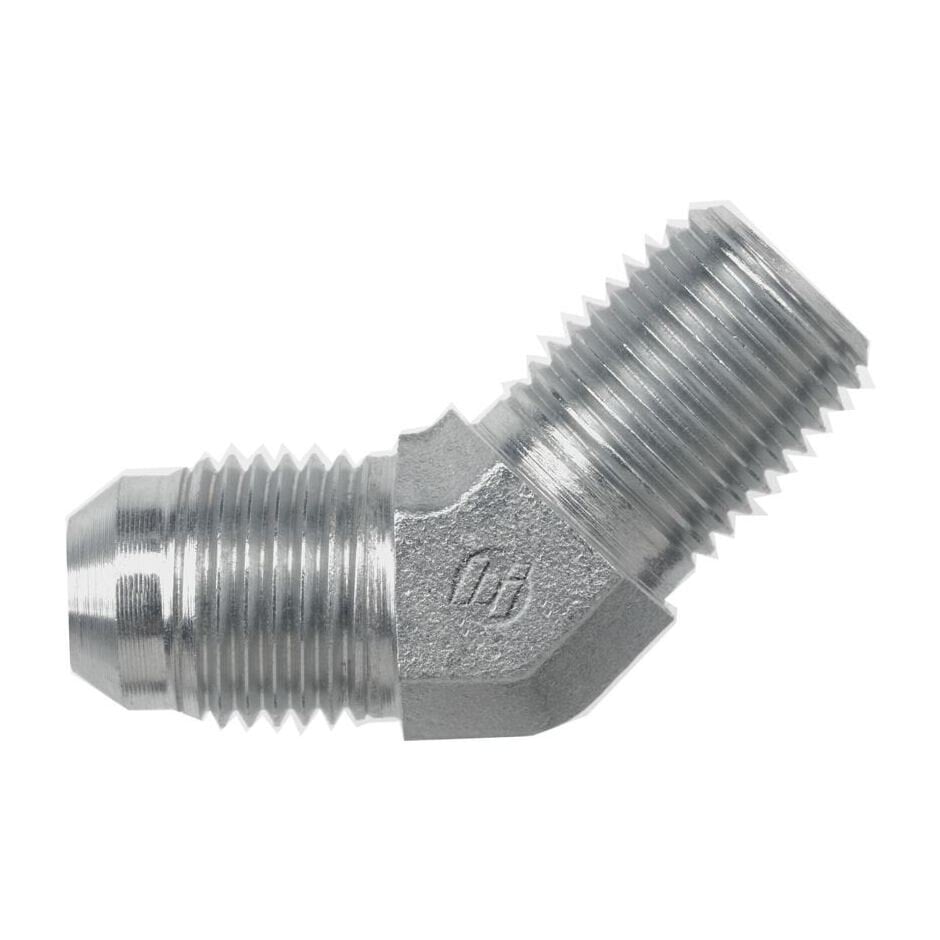

2503-04-04 (04BT-04MP 45° Elbow Forged)
2503-04-04 (04BT-04MP 45° Elbow Forged)
Regular price
$9.53 USD
Regular price
Sale price
$9.53 USD
Unit price
per
Couldn't load pickup availability

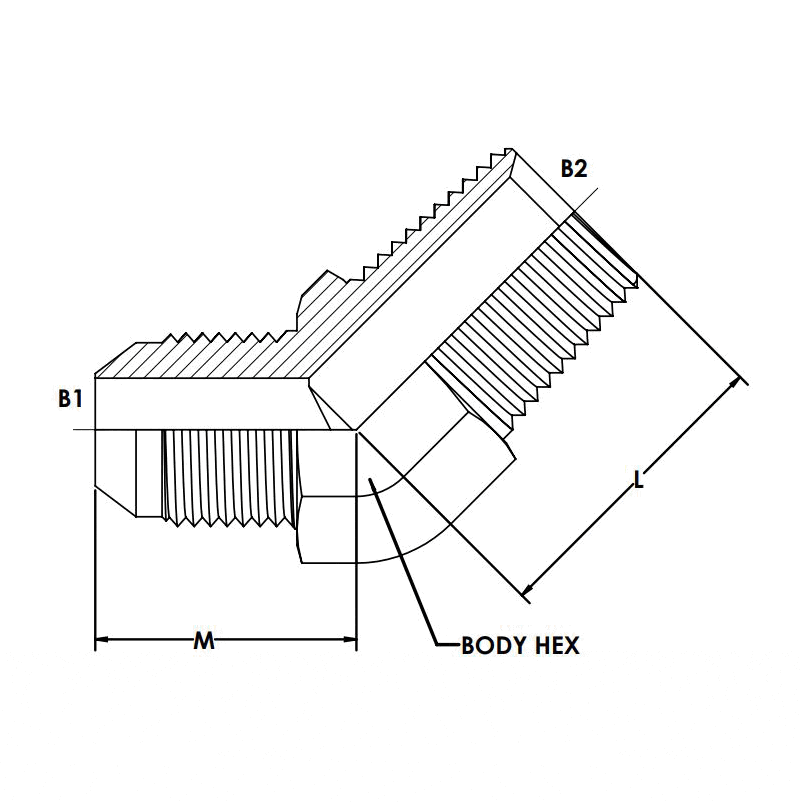

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.562 |
| CENTERLINE LENGTH M | 0.82 |
| CENTERLINE LENGTH L | 0.86 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.066 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
