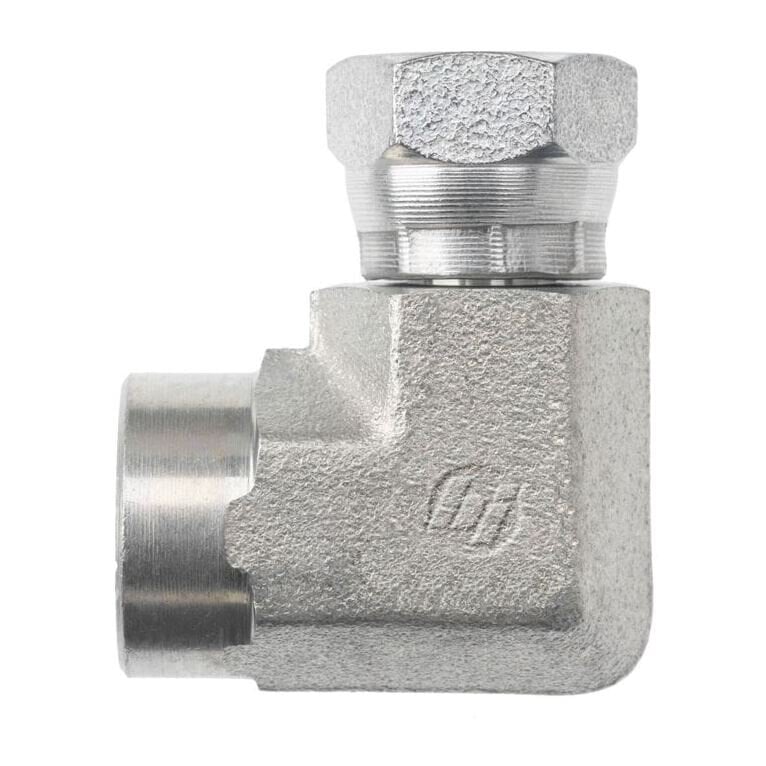

1502-04-04-FG (04FP-04FPS 90° Elbow Forged)
1502-04-04-FG (04FP-04FPS 90° Elbow Forged)
Regular price
$3.82 USD
Regular price
Sale price
$3.82 USD
Unit price
per
Couldn't load pickup availability

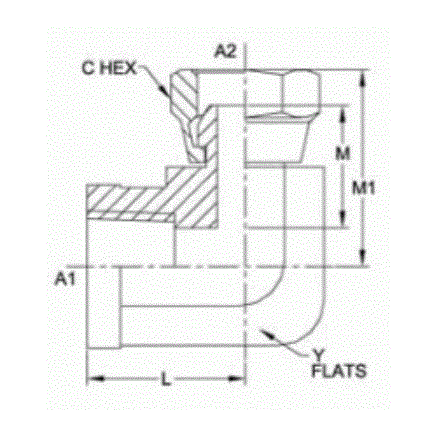

| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 1/4-18 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1/4-18 |
| THREAD A2 DRILL | 0.210 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 0.750 |
| C HEX 1 | 0.688 |
| CENTERLINE LENGTH L | 0.88 |
| CENTERLINE LENGTH M1 | 1.18 |
| CENTERLINE LENGTH M | 0.99 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.181 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
