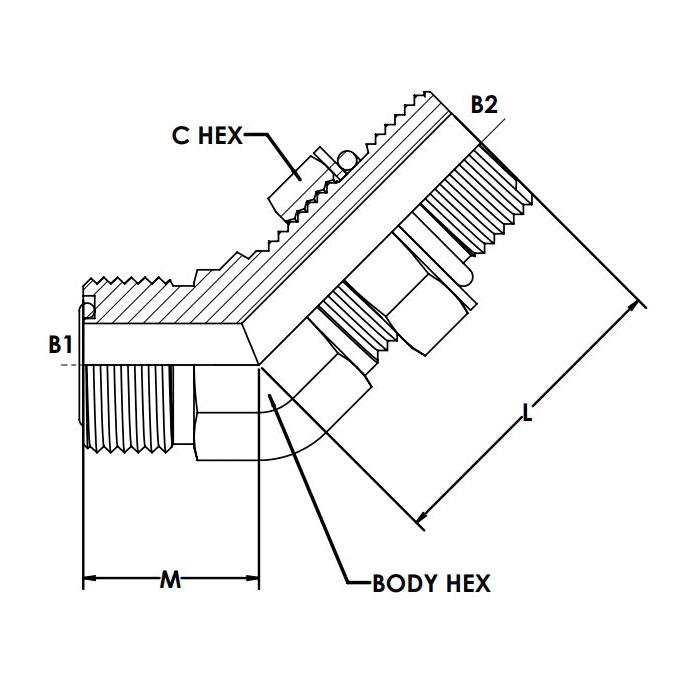

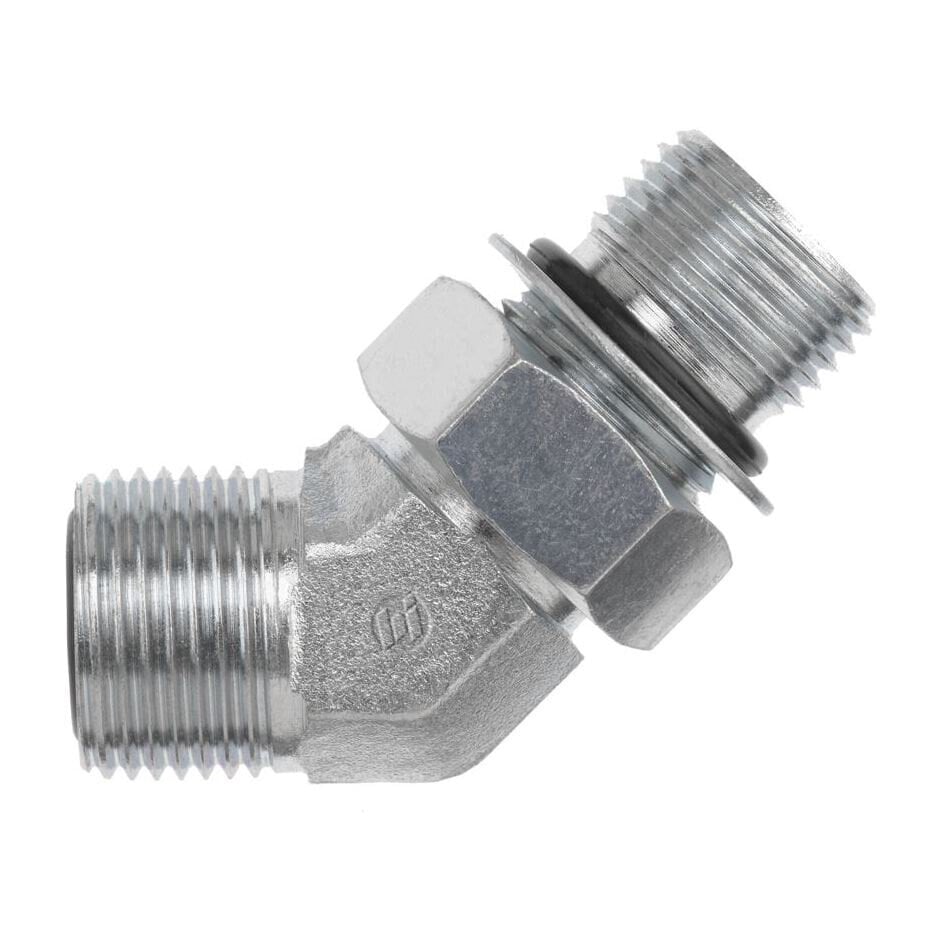

FS6802-04-06-NWO-FG (04MFS-06MAORB 45° Elbow Forged)

TUBE O.D. 1/4
A THREAD 9/16-18
B THREAD 9/16-18
A DRILL 0.172
B DRILL 0.264
M LGTH 0.68
N LGTH 1.30
C HEX 0.750
JJ FLATS 0.750
MATERIAL STEEL FORGED
