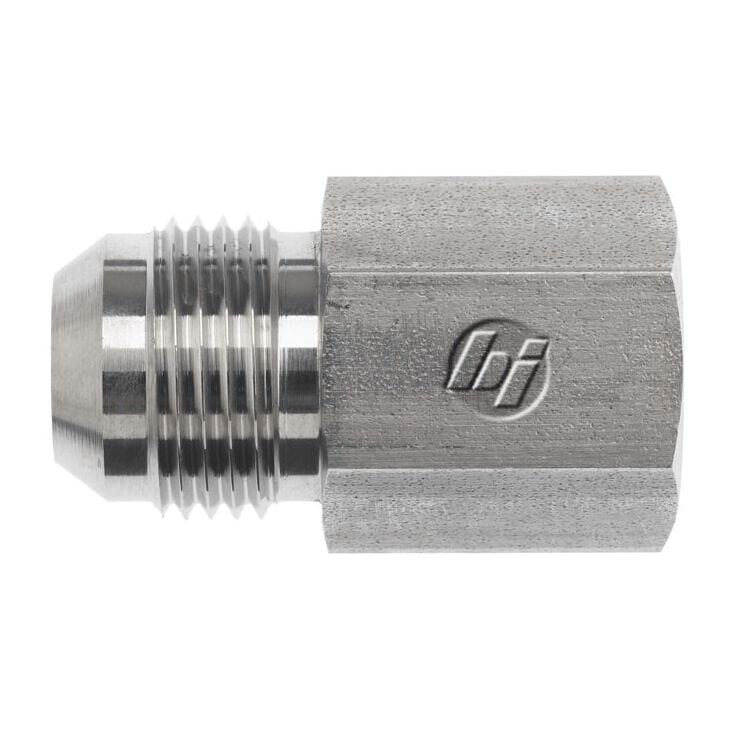

2405-04-02 (04MJ-02FP Straight)
2405-04-02 (04MJ-02FP Straight)
Regular price
$1.58 USD
Regular price
Sale price
$1.58 USD
Unit price
per
Couldn't load pickup availability

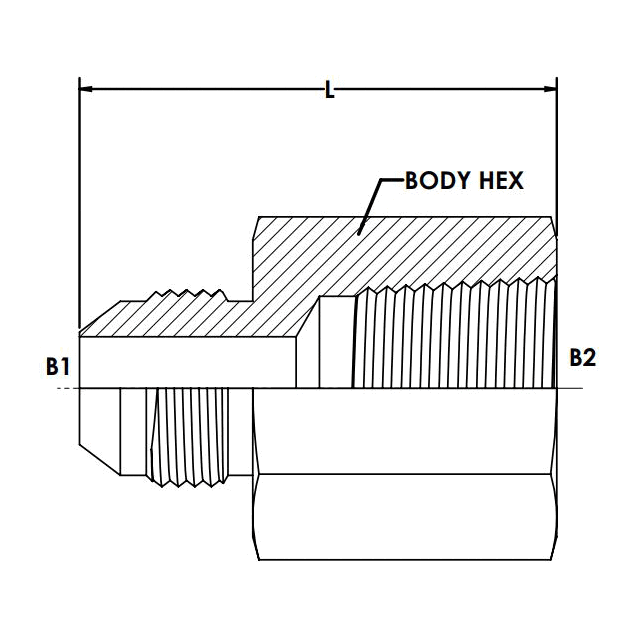

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.562 |
| OVERALL LENGTH 1 | 1.19 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.053 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
