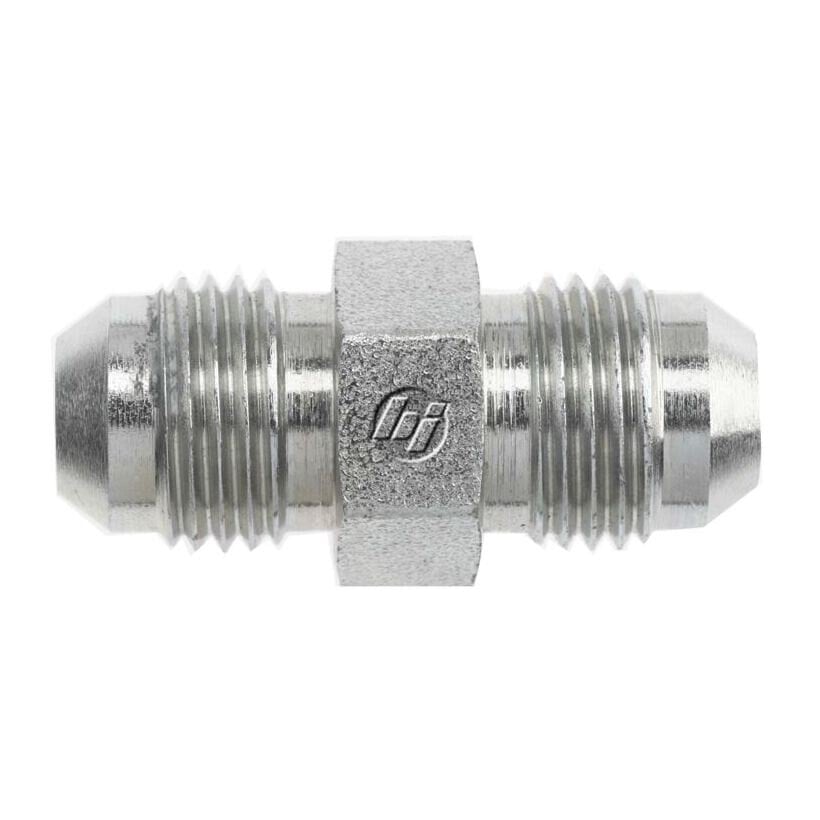

2403-04-02 (04MJ-02MJ Straight)
2403-04-02 (04MJ-02MJ Straight)
Regular price
$2.24 USD
Regular price
Sale price
$2.24 USD
Unit price
per
Couldn't load pickup availability

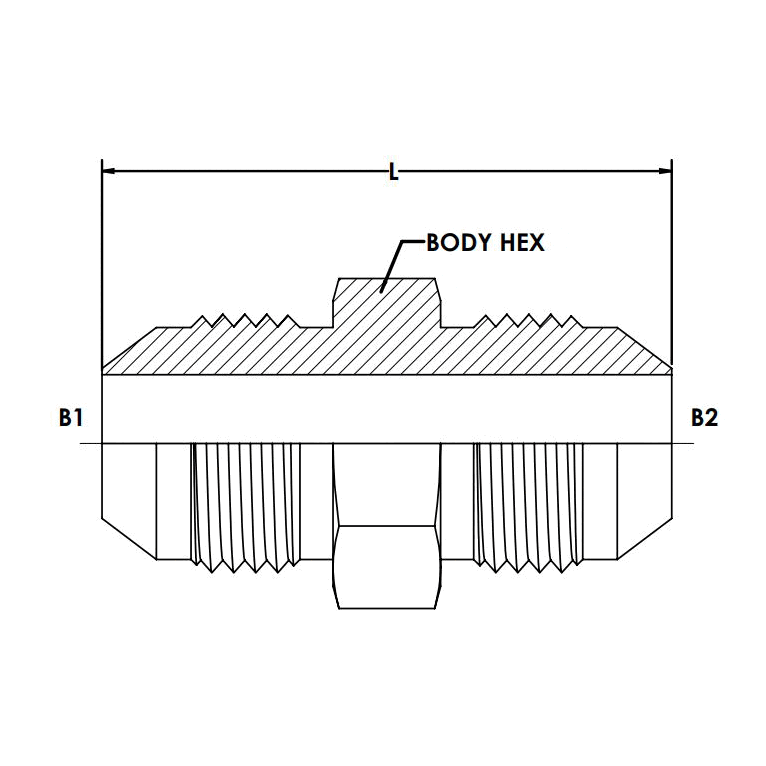

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 5/16-24 |
| THREAD B2 DRILL | 0.062 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX | 0.500 |
| OVERALL LENGTH 1 | 1.27 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.040 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 7,500 |
