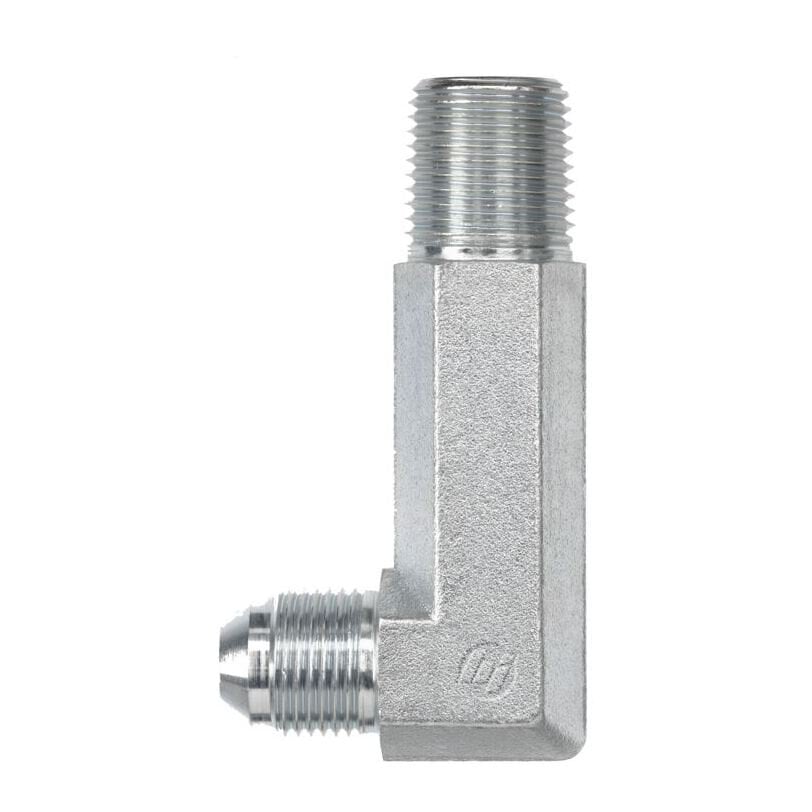

• 04MJ-02MP 90° Elbow X-Long Frg 1.56 L Dim
  • 04MJ-02MP 90° Elbow X-Long Frg 1.56 L Dim
1 2

2501-LL-04-02-FG (04MJ-02MP 90° Elbow X-Long Frg (1.56 L Dim))

2501-LL-04-02-FG (04MJ-02MP 90° Elbow X-Long Frg (1.56 L Dim))

$4.08 USD
$4.08 USD
Sale Sold out
THREAD B1 TYPE MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 7/16-20
THREAD B1 DRILL 0.172
THREAD B1 SPECIFICATION SAE J514
THREAD B2 TYPE MALE NPTF
THREAD B2 SIZE 1/8-27
THREAD B2 DRILL 0.188
THREAD B2 SPECIFICATION SAE J476

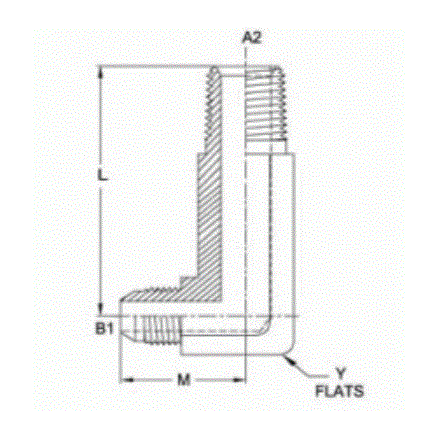

BODY HEX 0.438
CENTERLINE LENGTH M 0.89
CENTERLINE LENGTH L 1.56
SHAPE 90 DEGREE ANGLE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
WEIGHT (LBS) 0.081
MAXIMUM DYNAMIC PRESSURE (PSI) 6,000
