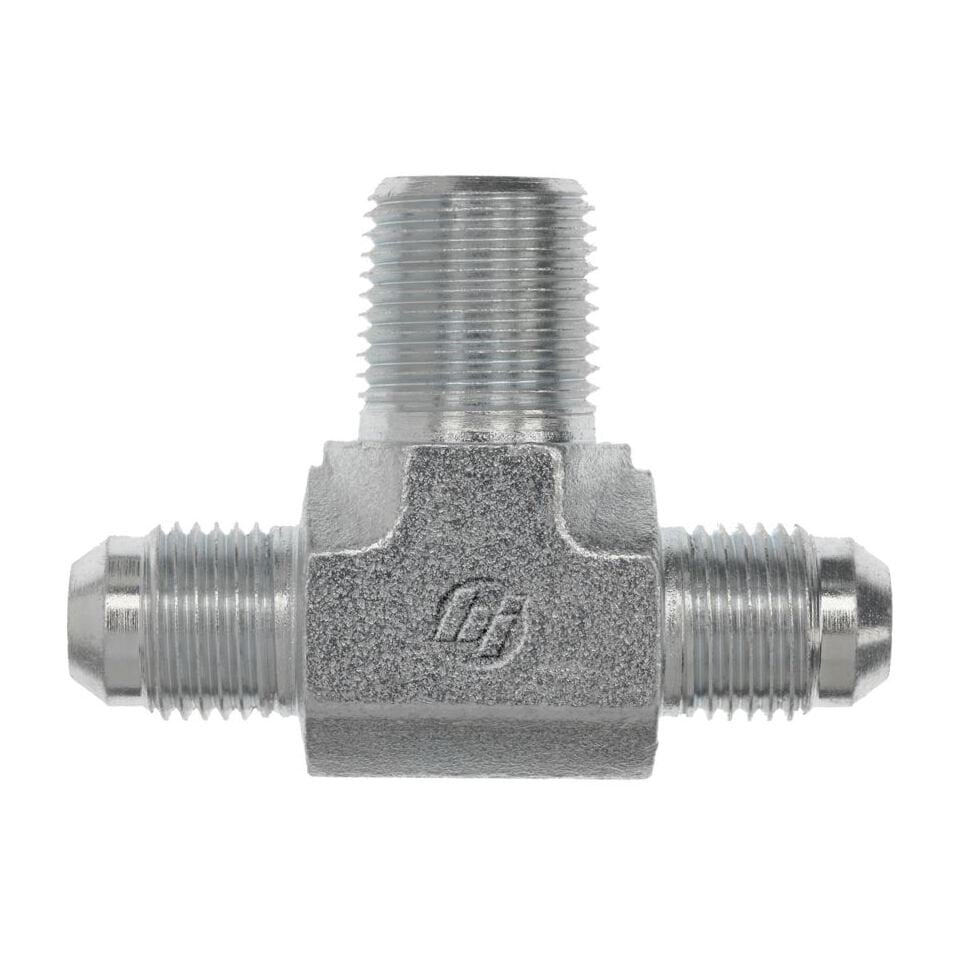

2601-04-04-02-FG (04MJ-04MJ-02MP Branch Tee)
2601-04-04-02-FG (04MJ-04MJ-02MP Branch Tee)
Regular price
$3.38 USD
Regular price
Sale price
$3.38 USD
Unit price
per
Couldn't load pickup availability

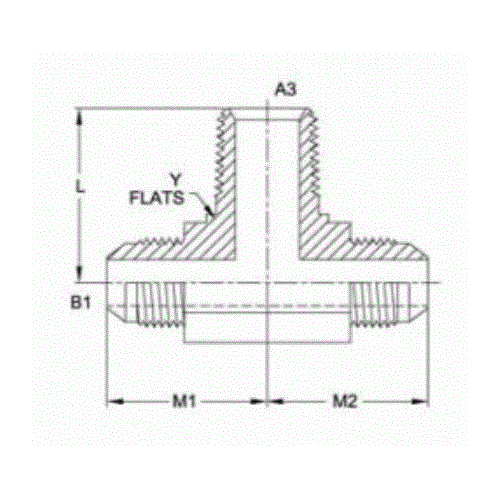

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD A3 TYPE | MALE NPTF |
| THREAD A3 SIZE | 1/8-27 |
| THREAD A3 DRILL | 0.188 |
| THREAD A3 SPECIFICATION | SAE J476 |
| BODY HEX | 0.438 |
| OVERALL LENGTH (M1,M2) | 1.78 |
| OVERALL HEIGHT (L + 1/2 HEX) | 0.999 |
| CENTERLINE LENGTH M1 | 0.89 |
| CENTERLINE LENGTH M2 | 0.89 |
| CENTERLINE LENGTH L | 0.78 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.068 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
