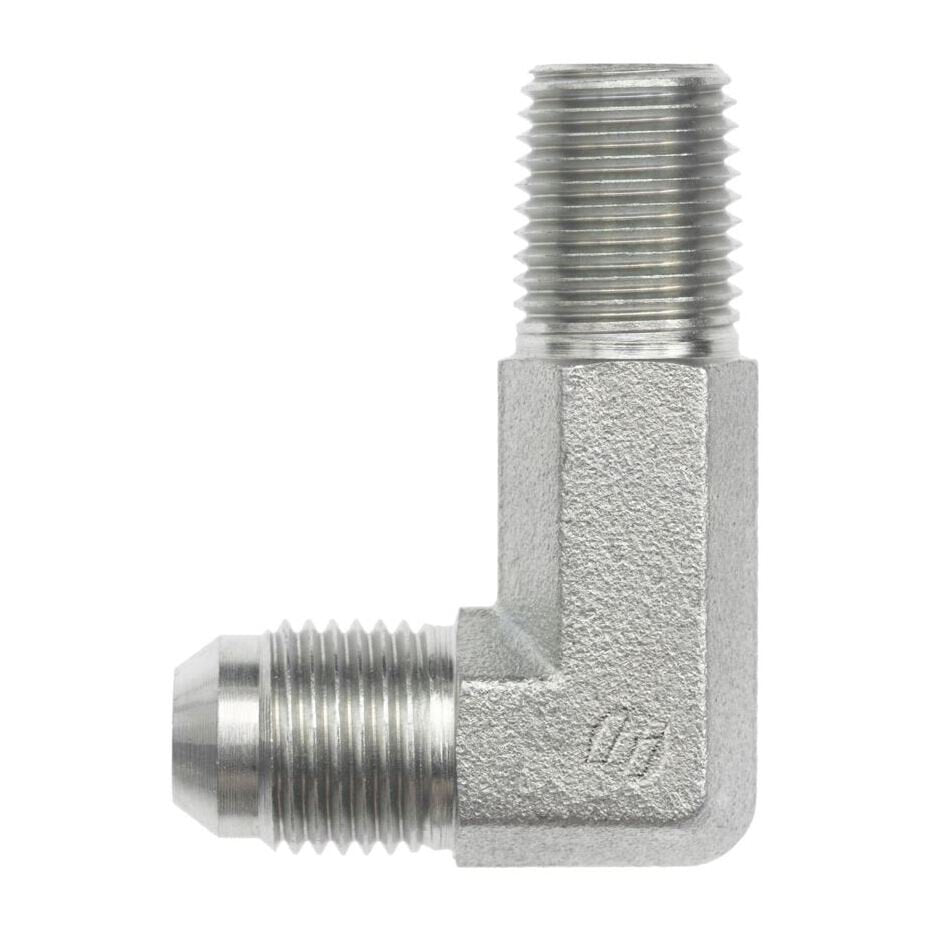

2501-L-04-04-FG (04MJ-04MP 90° Elbow Long Frg (1.58 L Dim))
2501-L-04-04-FG (04MJ-04MP 90° Elbow Long Frg (1.58 L Dim))
Regular price
$4.15 USD
Regular price
Sale price
$4.15 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.562 |

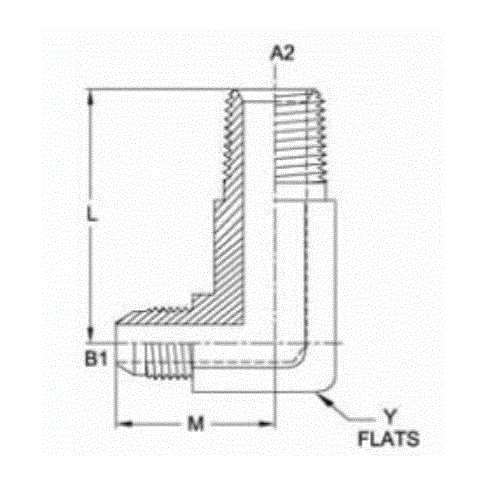

| CENTERLINE LENGTH M | 1.05 |
| CENTERLINE LENGTH L | 1.58 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.119 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
