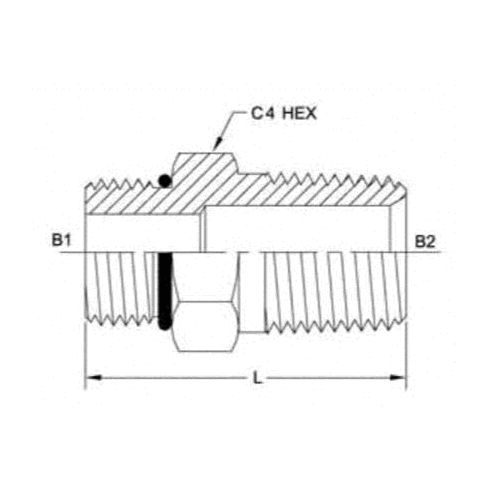

6401-04-02-O (04MORB-02MP Straight)
6401-04-02-O (04MORB-02MP Straight)
Regular price
$1.70 USD
Regular price
Sale price
$1.70 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.562 |
| OVERALL LENGTH L | 1.04 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.040 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
