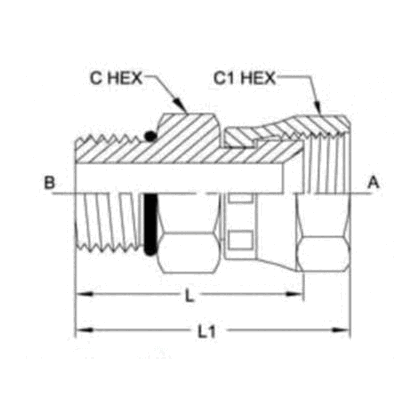

6402-04-04-O (04MORB-04FJS Straight)
6402-04-04-O (04MORB-04FJS Straight)
Regular price
$3.54 USD
Regular price
Sale price
$3.54 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD A1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD A1 SIZE | 7/16-20 |
| THREAD A1 DRILL | 0.172 |
| THREAD A1 SPECIFICATION | SAE J514 |
| BODY HEX | 0.562 |
| C HEX 1 | 0.562 |
| OVERALL LENGTH L1 | 1.31 |
| OVERALL LENGTH L | 0.96 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.100 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
