5602-04-04-04-FG (04MP-04FP-04FP Street Tee For...)

5602-04-04-04-FG (04MP-04FP-04FP Street Tee For...)

Regular price $3.91 USD
Regular price Sale price $3.91 USD
Sale Sold out

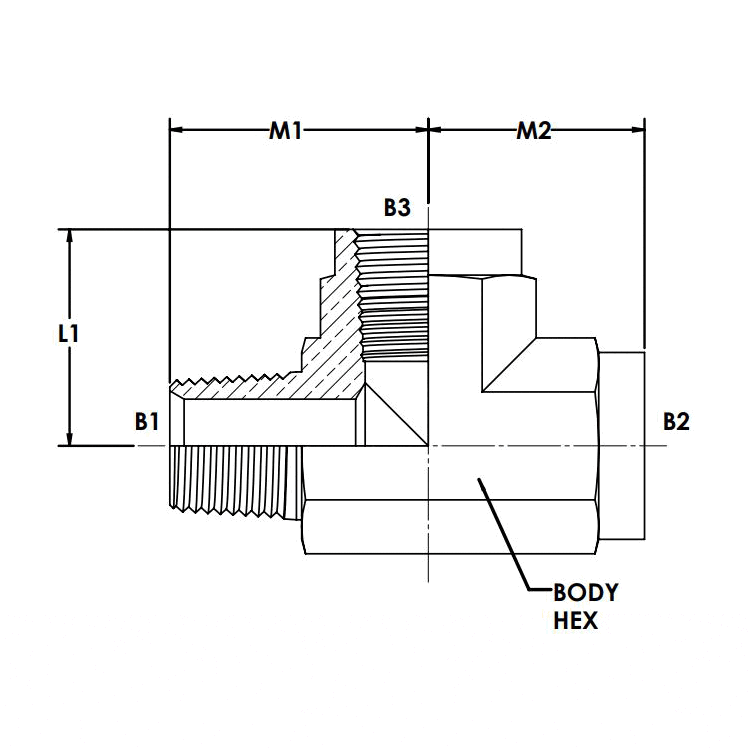

THREAD B1 TYPE MALE NPTF
THREAD B1 SIZE 1/4-18
THREAD B1 DRILL 0.281
THREAD B1 SPECIFICATION SAE J476
THREAD B2 TYPE FEMALE NPTF
THREAD B2 SIZE 1/4-18
THREAD B2 SPECIFICATION SAE J476
THREAD B3 TYPE FEMALE NPTF
THREAD B3 SIZE 1/4-18
THREAD B3 SPECIFICATION SAE J476
BODY HEX 0.750
CENTERLINE LENGTH M1 1.09
CENTERLINE LENGTH M2 0.88
CENTERLINE LENGTH L1 0.88
SHAPE TEE
BODY MATERIAL STEEL
RAW MATERIAL TYPE STEEL FORGING
PLATING CR3
WEIGHT (LBS) 0.185
MAXIMUM DYNAMIC PRESSURE (PSI) 6,000
