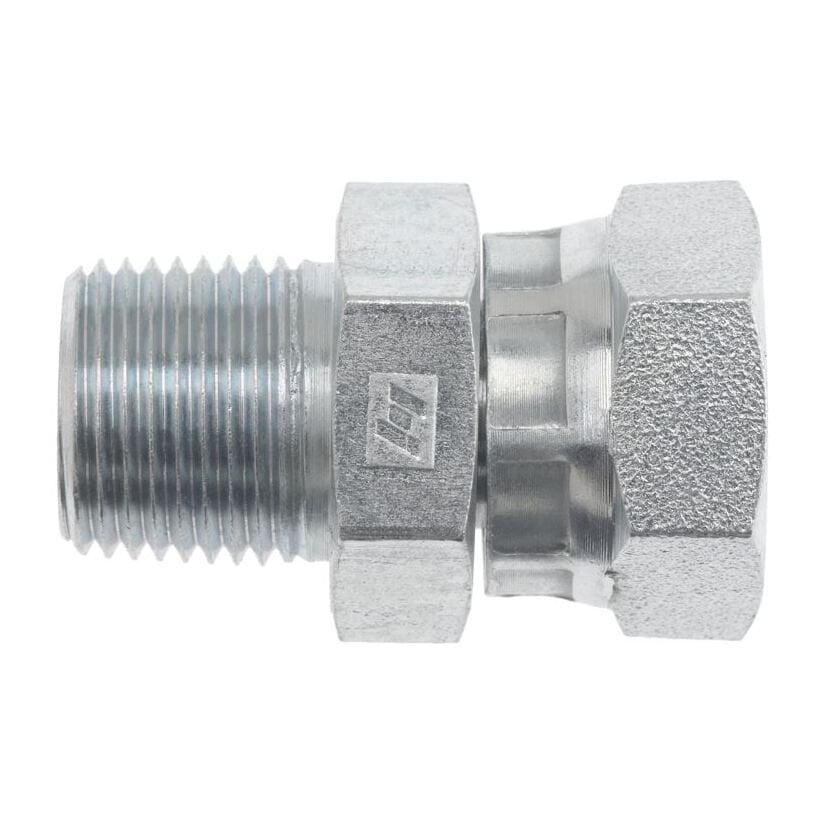

1404-04-04 (04MP-04FPS Straight)
1404-04-04 (04MP-04FPS Straight)
Regular price
$2.24 USD
Regular price
Sale price
$2.24 USD
Unit price
per
Couldn't load pickup availability

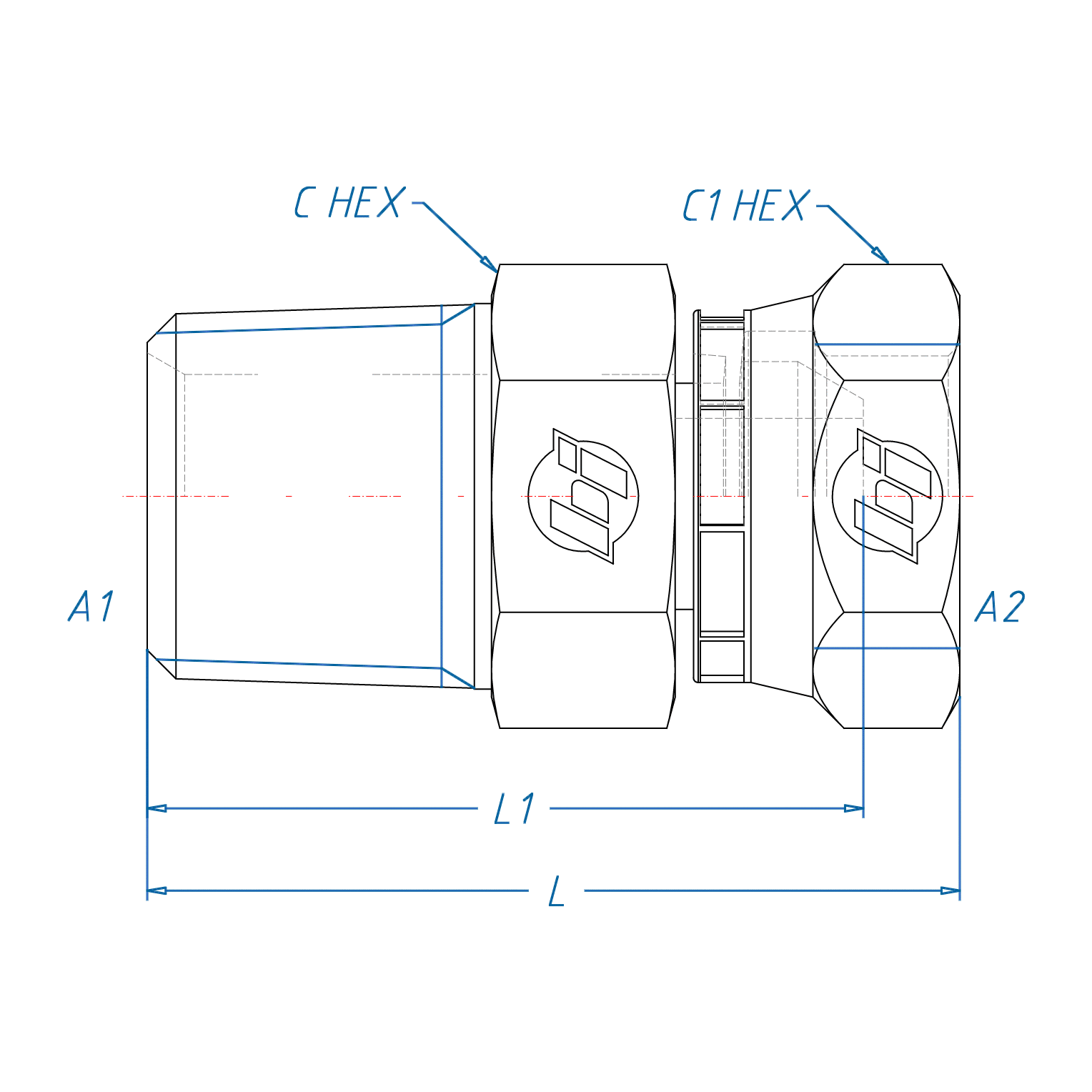

THREAD A1 TYPE MALE NPTF
THREAD A1 SIZE 1/4-18
THREAD A1 DRILL 0.281
THREAD A1 SPECIFICATION SAE J476
THREAD A2 TYPE FEMALE NPSM SWIVEL
THREAD A2 SIZE 1/4-18
THREAD A2 DRILL 0.21
THREAD A2 SPECIFICATION SAE J514
BODY HEX 0.688
C HEX 1 0.688
OVERALL LENGTH L 1.42
OVERALL LENGTH L1 1.23
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.087
MAXIMUM DYNAMIC PRESSURE (PSI) 6,000
