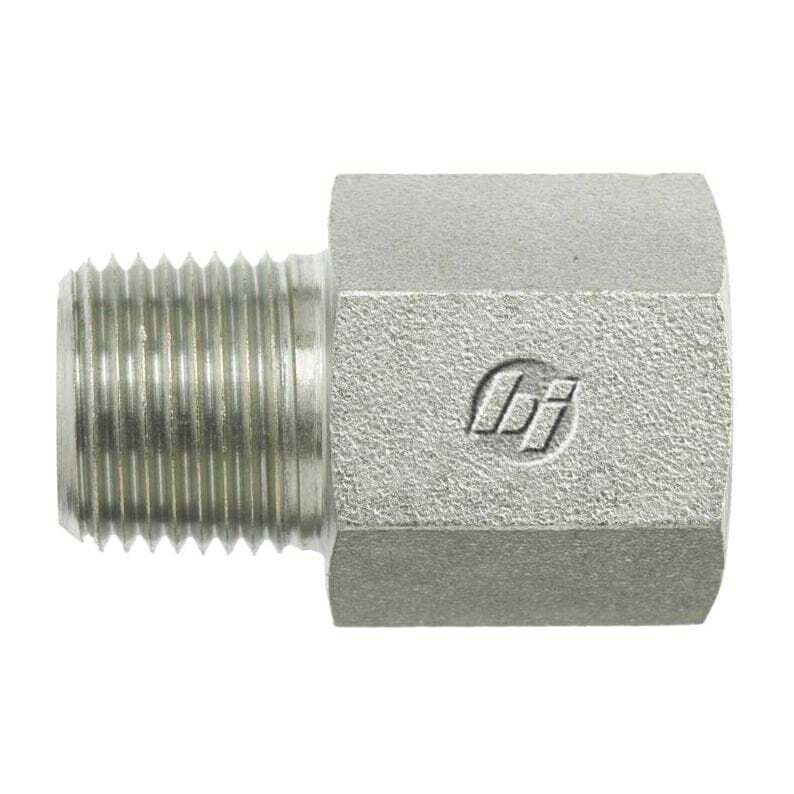

5405-04-06 (04MP-06FP Straight Expander)
5405-04-06 (04MP-06FP Straight Expander)
Regular price
$2.31 USD
Regular price
Sale price
$2.31 USD
Unit price
per
Couldn't load pickup availability

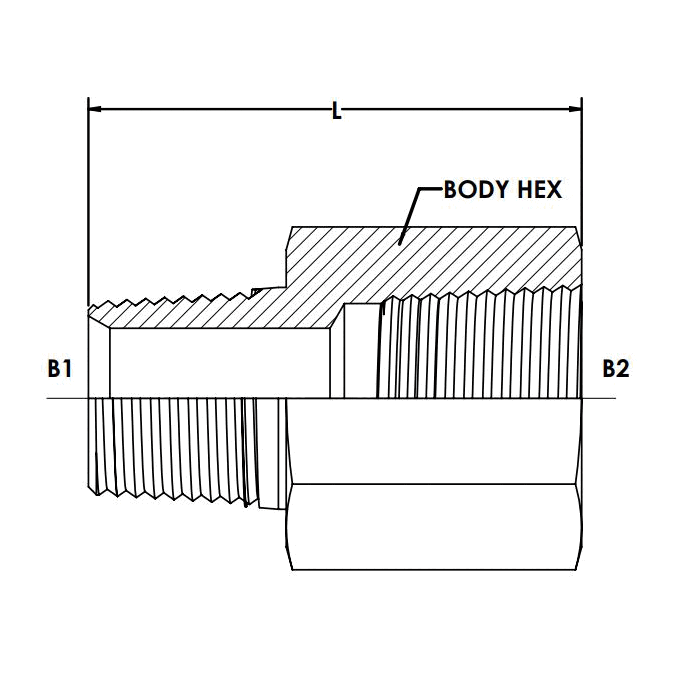

| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.875 |
| OVERALL LENGTH L | 1.44 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.120 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
