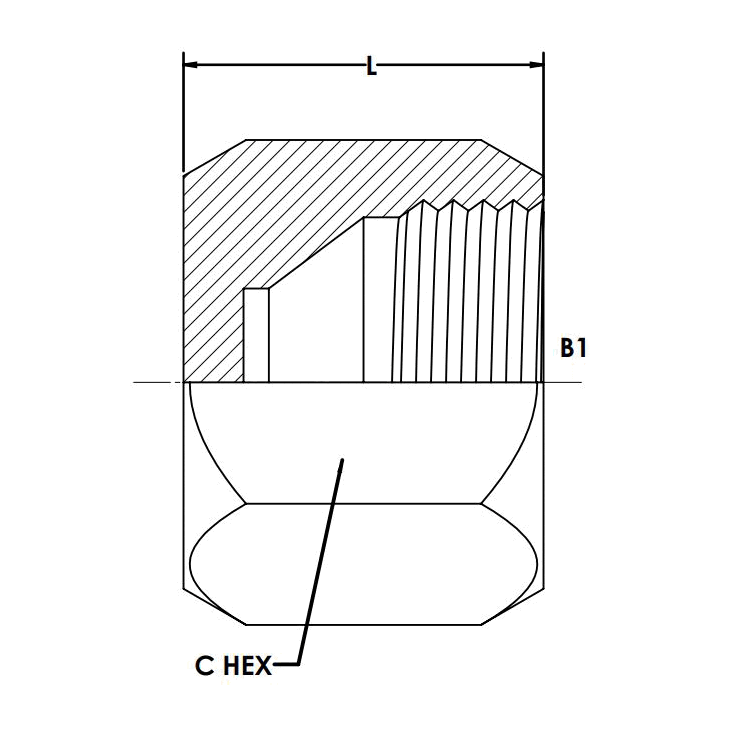

0304-C-05 (05 JIC Cap)
0304-C-05 (05 JIC Cap)
Regular price
$0.93 USD
Regular price
Sale price
$0.93 USD
Unit price
per
Couldn't load pickup availability
THREAD B1 TYPE FEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE 1/2-20
THREAD B1 SPECIFICATION SAE J514
BODY HEX 0.625
OVERALL LENGTH 1 0.61
SHAPE STRAIGHT
BODY MATERIAL STEEL
RAW MATERIAL TYPE STRAIGHT STEEL
PLATING CR3
WEIGHT (LBS) 0.036
MAXIMUM DYNAMIC PRESSURE (PSI) 6,000
