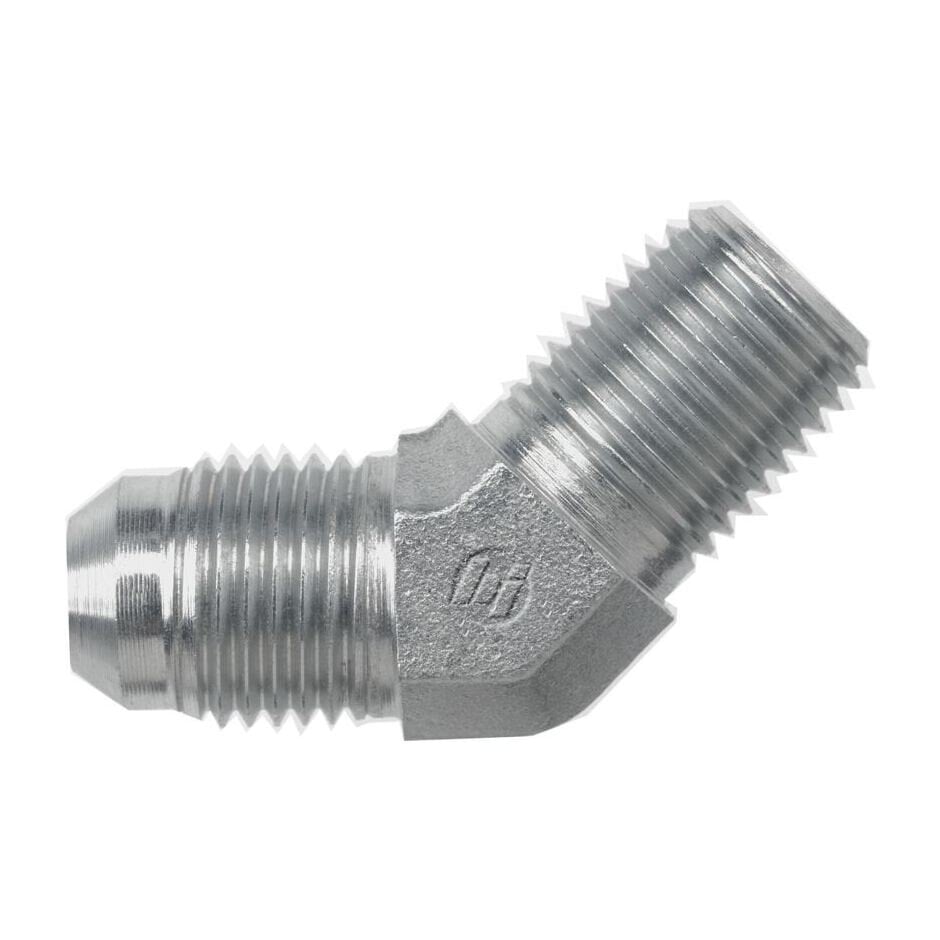

2503-05-02 (05MJ-02MP 45° Elbow Forged)
2503-05-02 (05MJ-02MP 45° Elbow Forged)
Regular price
$3.31 USD
Regular price
Sale price
$3.31 USD
Unit price
per
Couldn't load pickup availability

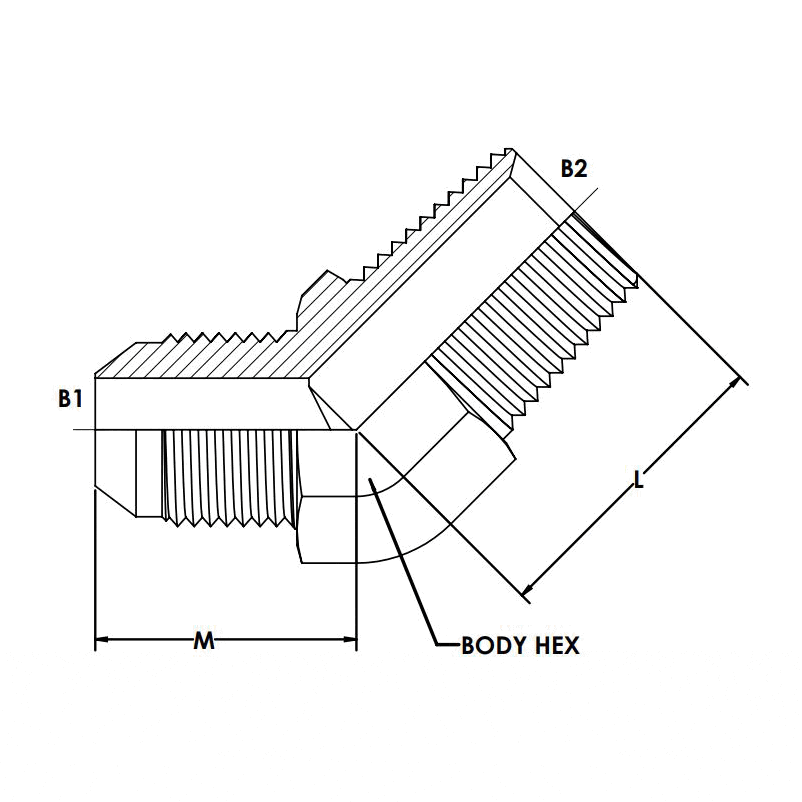

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.562 |
| CENTERLINE LENGTH M | 0.77 |
| CENTERLINE LENGTH L | 0.64 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.056 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
