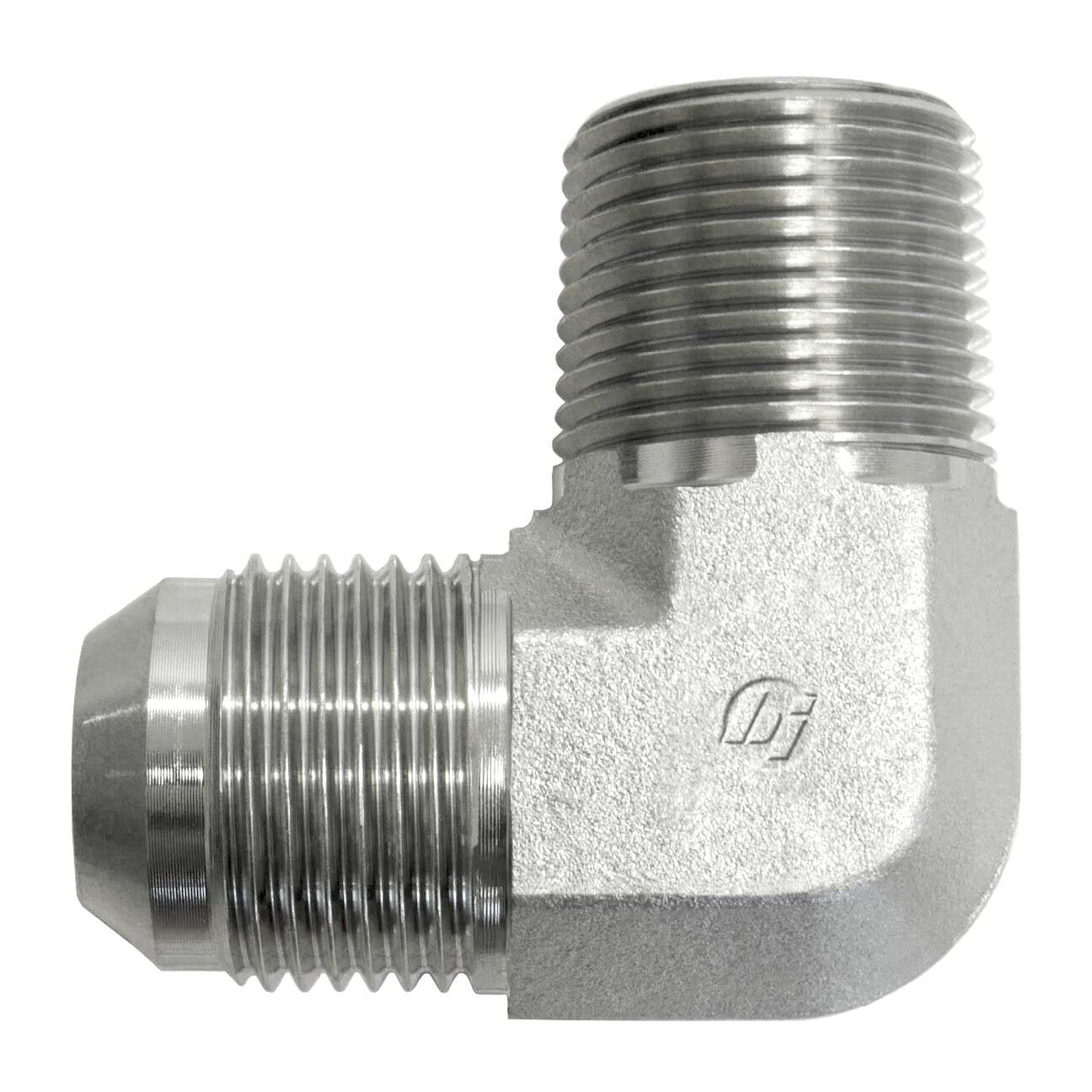

2501-05-02-FG (05MJ-02MP 90° Elbow Forged)
2501-05-02-FG (05MJ-02MP 90° Elbow Forged)
Regular price
$2.68 USD
Regular price
Sale price
$2.68 USD
Unit price
per

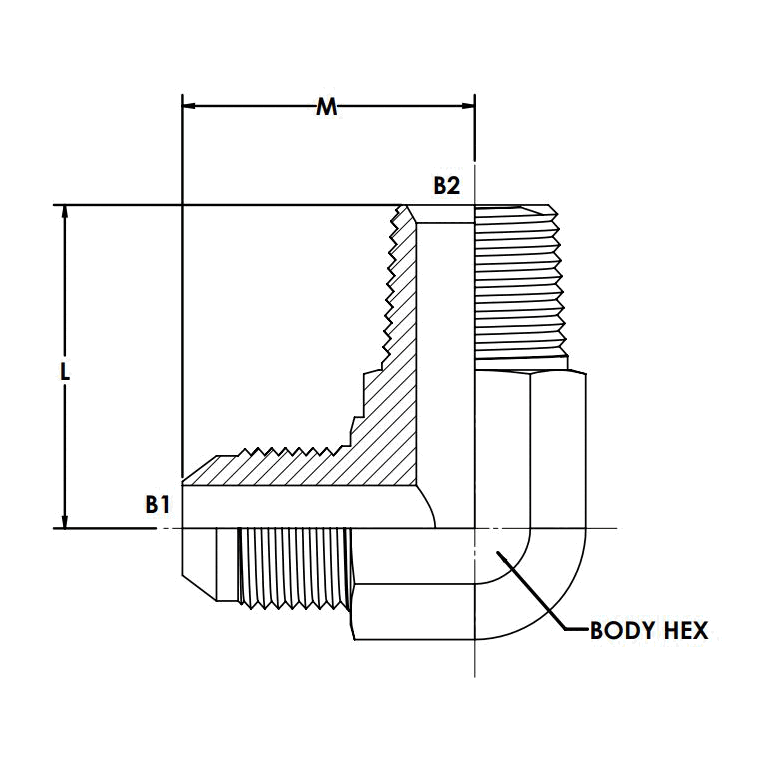

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 1/2-20 |
THREAD B1 DRILL | 0.234 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | MALE NPTF |
THREAD B2 SIZE | 1/8-27 |
THREAD B2 DRILL | 0.188 |
THREAD B2 SPECIFICATION | SAE J476 |
BODY HEX | 0.562 |
CENTERLINE LENGTH M | 0.95 |
CENTERLINE LENGTH L | 0.78 |
SHAPE | 90 DEGREE ANGLE |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STEEL FORGING |
PLATING | CR3 |
WEIGHT (LBS) | 0.072 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
