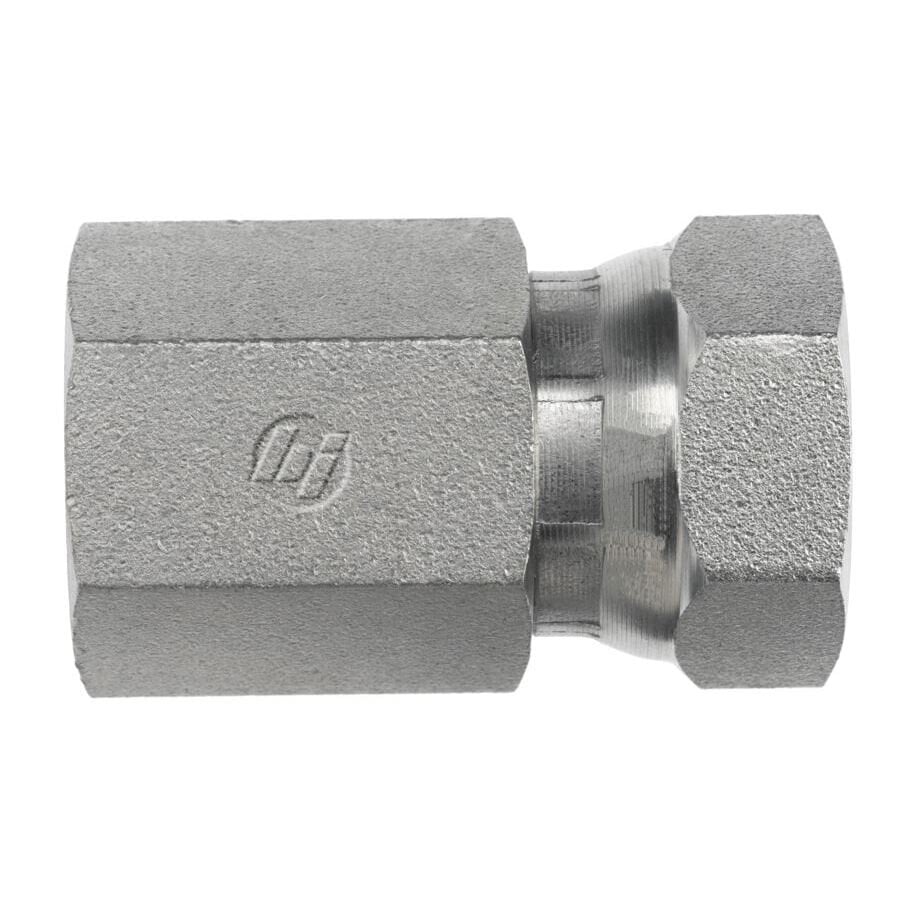

1405-06-04 (06FP-04FPS Straight)
1405-06-04 (06FP-04FPS Straight)
Regular price
$5.24 USD
Regular price
Sale price
$5.24 USD
Unit price
per

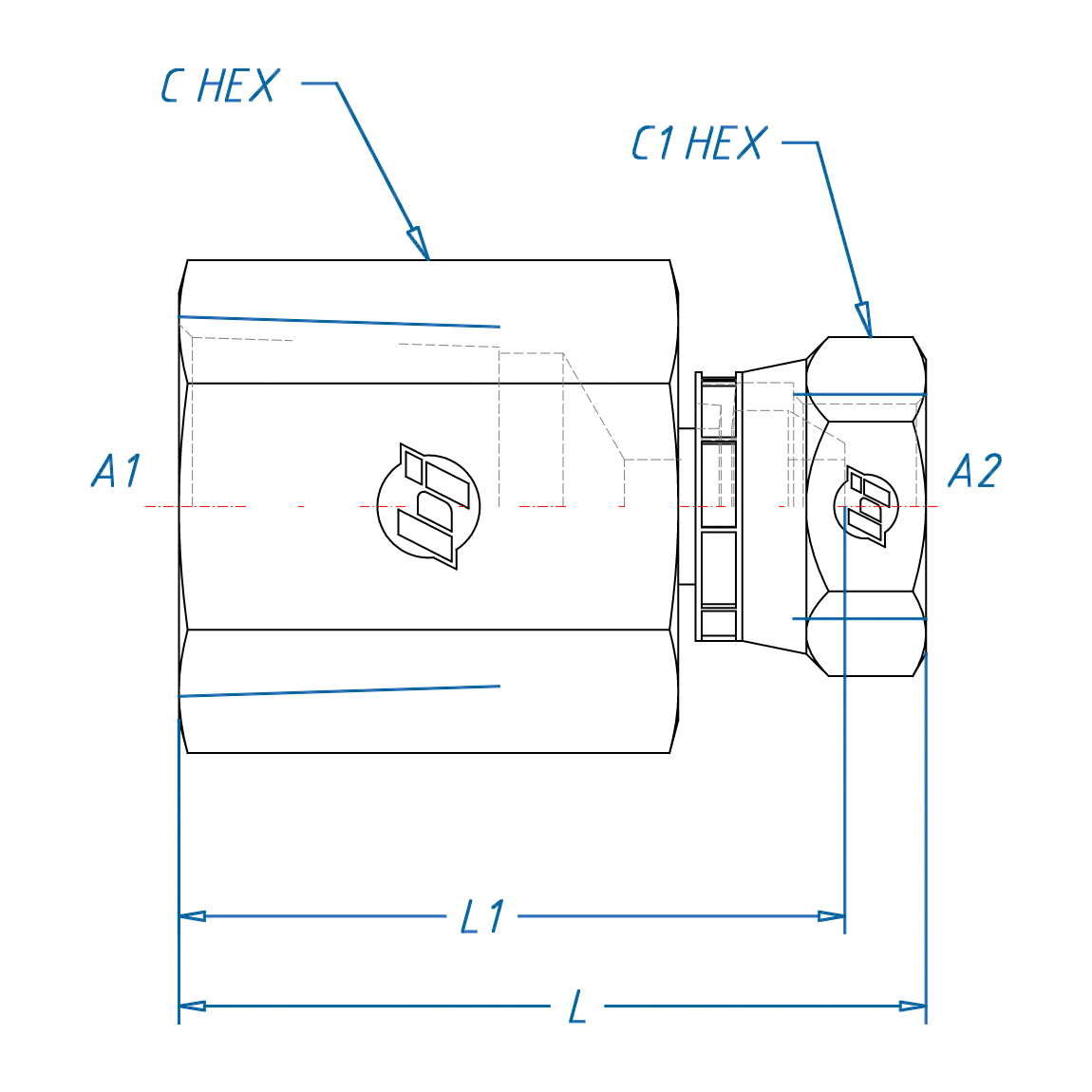

THREAD A1 TYPE | FEMALE NPTF |
THREAD A1 SIZE | 3/8-18 |
THREAD A1 SPECIFICATION | SAE J476 |
THREAD A2 TYPE | FEMALE NPSM SWIVEL |
THREAD A2 SIZE | 1/4-18 |
THREAD A2 DRILL | 0.210 |
THREAD A2 SPECIFICATION | SAE J514 |
BODY HEX | 0.875 |
C HEX 1 | 0.688 |
OVERALL LENGTH L | 1.48 |
OVERALL LENGTH L1 | 1.29 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 0.148 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
