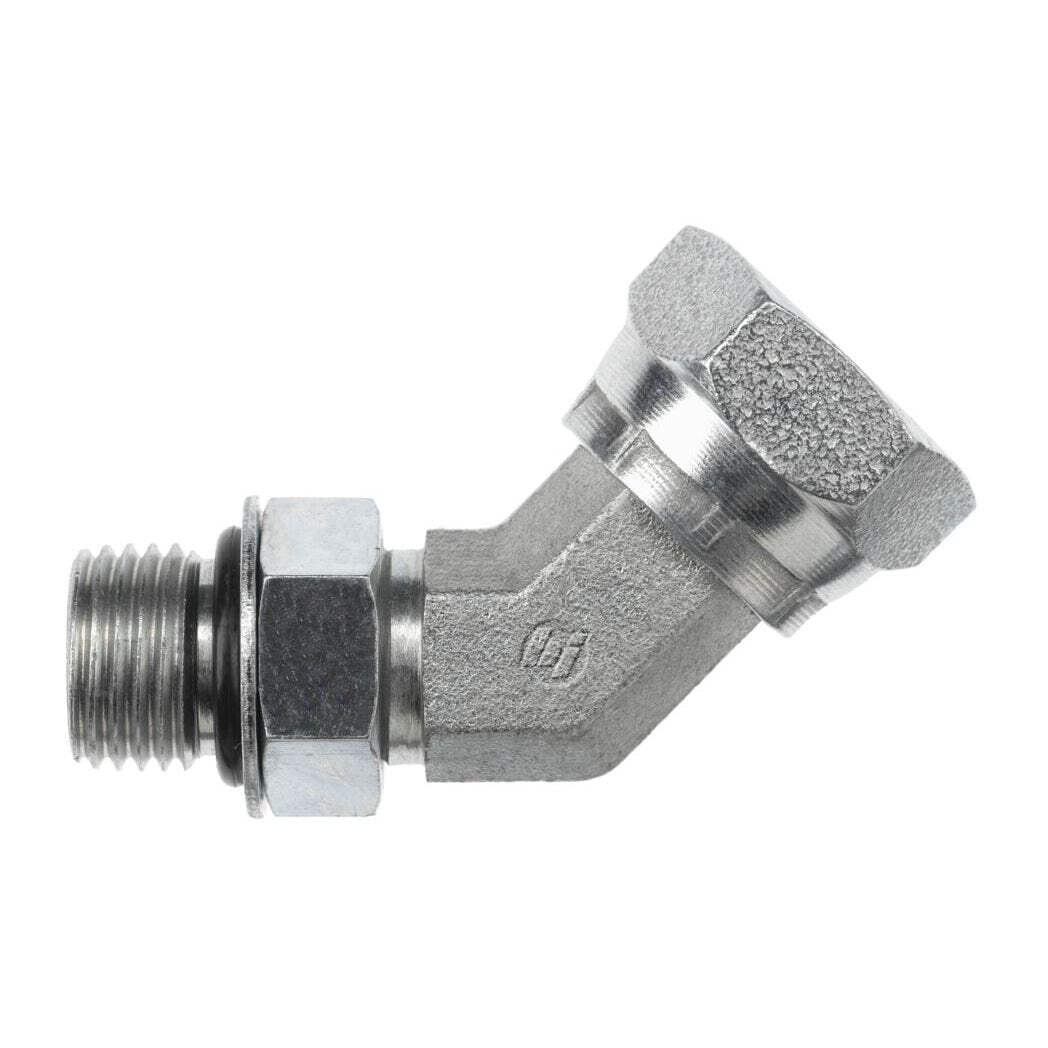

6902-06-08-NWO-FG (06MAORB-08FPS 45° Elbow Forged)
6902-06-08-NWO-FG (06MAORB-08FPS 45° Elbow Forged)
Regular price
$34.41 USD
Regular price
Sale price
$34.41 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.46 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.688 |
| C HEX 2 IN | 1.000 |
| OVERALL LENGTH L IN | 1.170 |
| OVERALL LENGTH L2 IN | 0.890 |
| CENTERLINE LENGTH M IN | 1.140 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
