6901-06-08-NWO-FG (06MAORB-08FPS 90° Elbow Forged)
6901-06-08-NWO-FG (06MAORB-08FPS 90° Elbow Forged)
Regular price
$11.70 USD
Regular price
Sale price
$11.70 USD
Unit price
per
Couldn't load pickup availability

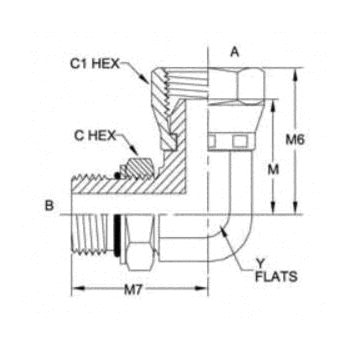

TUBE O.D. | 3/8 |
B SAE ORB | 9/16-18 |
A NPSM | 1/2-14 |
B DRILL | 0.297 |
A DRILL | 0.44/0.46 |
M7 LGTH | 1.320 |
M LGTH | 1.040 |
M6 LGTH | 1.320 |
C HEX | 0.688 |
C1 HEX | 1.000 |
Y FLATS | 0.750 |
MATERIAL | STEEL FORGED |
