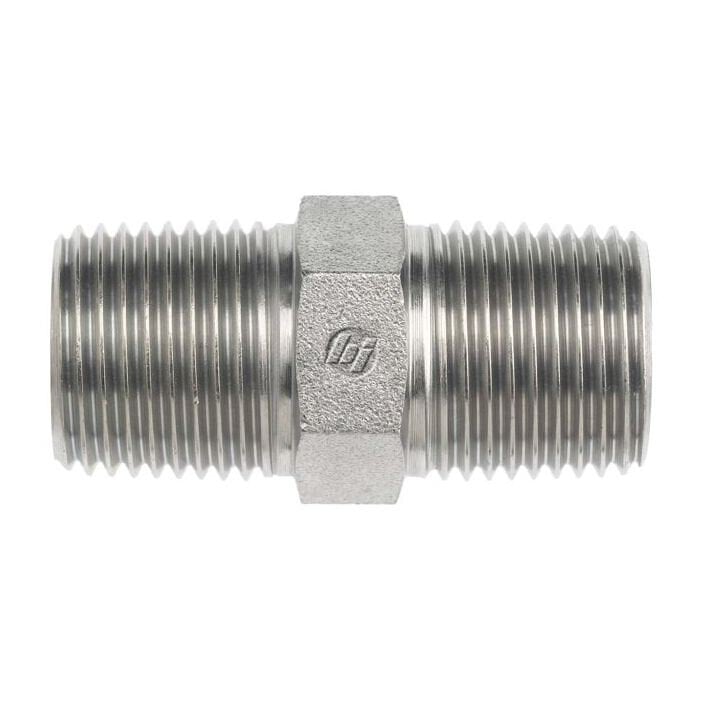

9000-06-04 (06MBSPT-04MBSPT Hex Nipple)
9000-06-04 (06MBSPT-04MBSPT Hex Nipple)
Regular price
$10.23 USD
Regular price
Sale price
$10.23 USD
Unit price
per
Couldn't load pickup availability

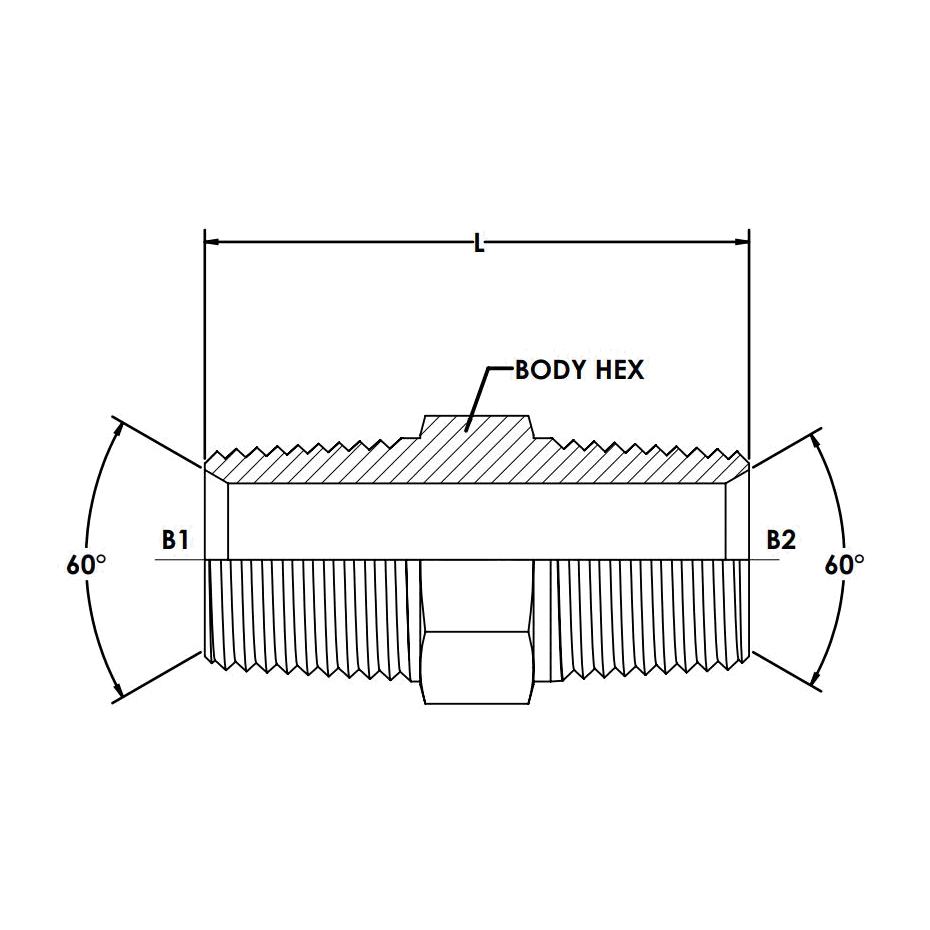

| THREAD TYPE B1 | MALE BSPT (R) |
| THREAD SIZE B1 | 3/8-19 |
| THREAD DRILL B1 (MM) | 9.0 |
| THREAD SPECIFICATION B1 | ISO 7-1 |
| THREAD TYPE B2 | MALE BSPT (R) |
| THREAD SIZE B2 | 1/4-19 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | ISO 7-1 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 35.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.094 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
