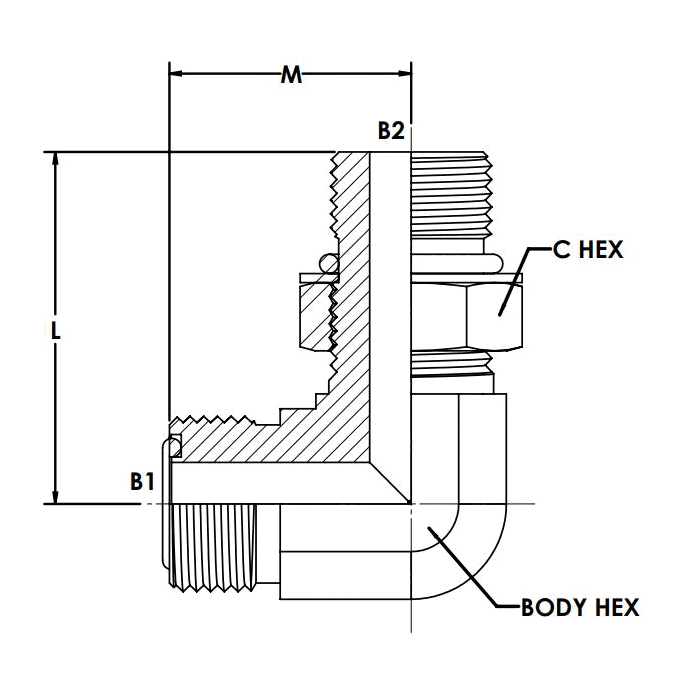

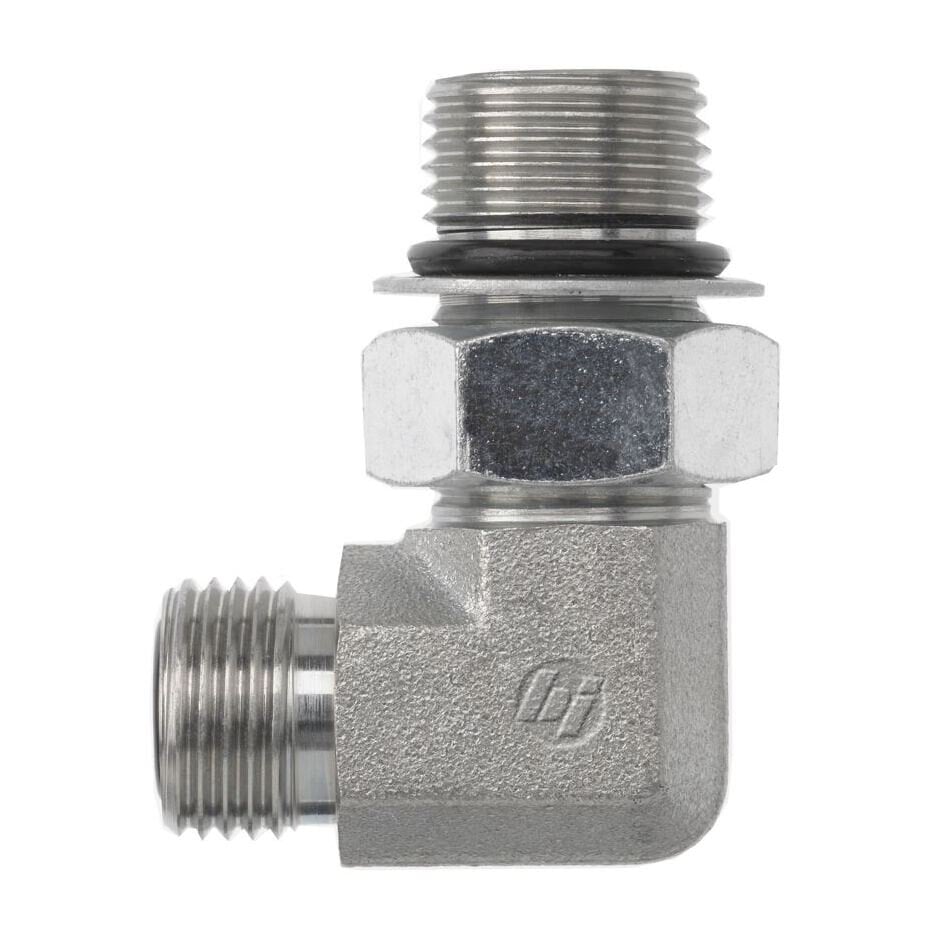

FS6801-06-08-NWO-FG (06MFS-08MAORB 90° Elbow Forged)

TUBE O.D. 3/8
A THREAD 11/16-16
B THREAD 3/4-16
A DRILL 0.264
B DRILL 0.378
M LGTH 1.04
N LGTH 1.60
C HEX 0.938
JJ FLATS 0.750
MATERIAL STEEL FORGED
