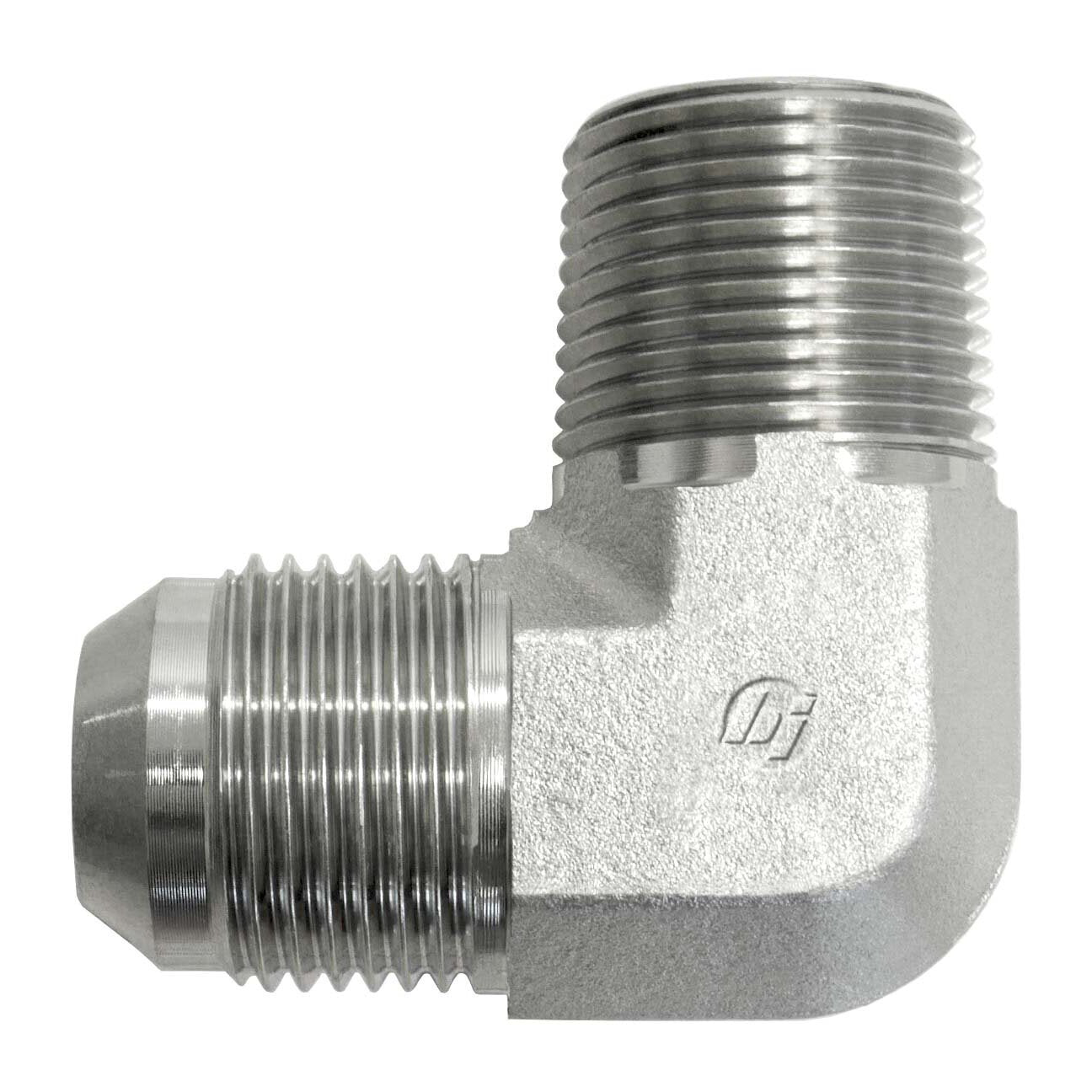

2501-06-02 (06MJ-02MP 90° Elbow Forged)
2501-06-02 (06MJ-02MP 90° Elbow Forged)
Regular price
$2.56 USD
Regular price
Sale price
$2.56 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/8-27 |
| THREAD B2 DRILL | 0.188 |
| THREAD B2 SPECIFICATION | SAE J476 |

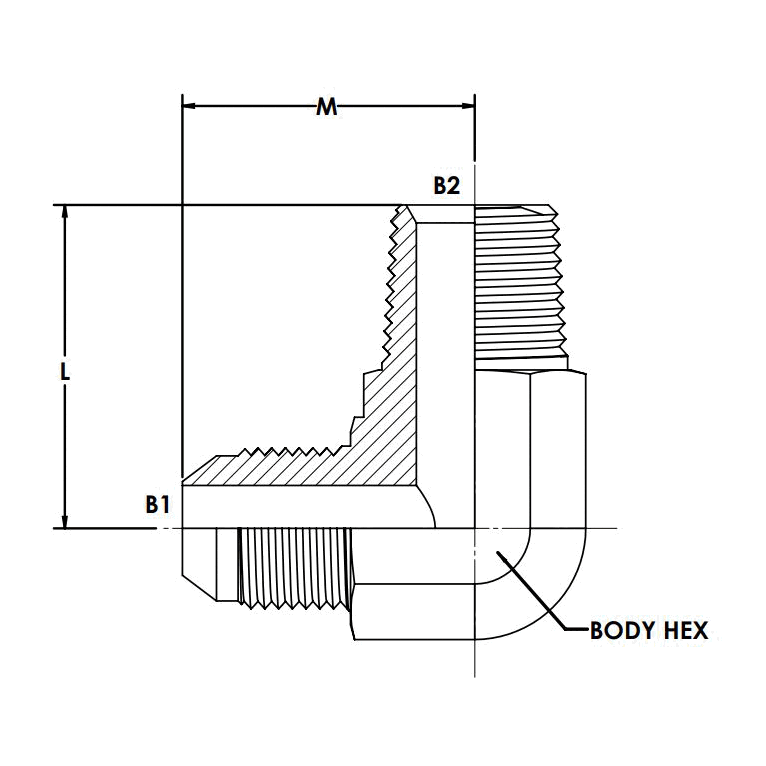

| BODY HEX | 0.562 |
| CENTERLINE LENGTH M | 1.06 |
| CENTERLINE LENGTH L | 0.90 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.084 |
