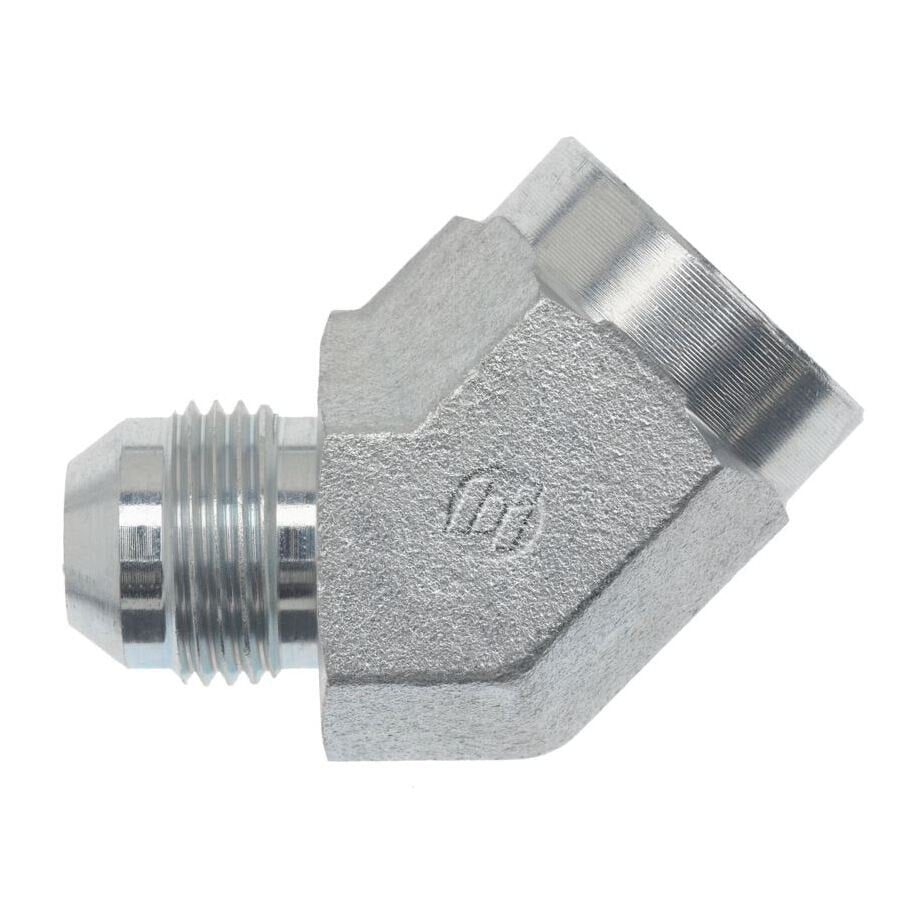

2505-06-04 (06MJ-04FP 45° Elbow Forged)
2505-06-04 (06MJ-04FP 45° Elbow Forged)
Regular price
$8.32 USD
Regular price
Sale price
$8.32 USD
Unit price
per
Couldn't load pickup availability

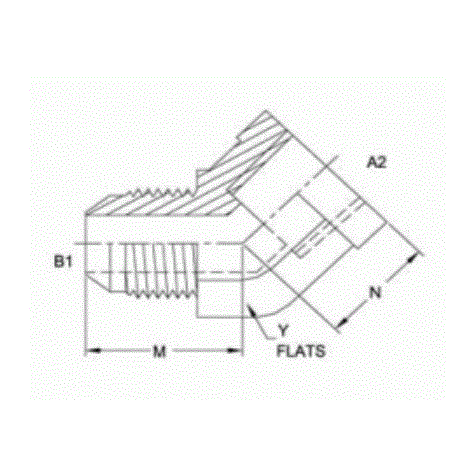

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD A2 TYPE | FEMALE NPTF |
| THREAD A2 SIZE | 1/4-18 |
| THREAD A2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.750 |
| CENTERLINE LENGTH M | 0.87 |
| CENTERLINE LENGTH N | 0.69 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.113 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
