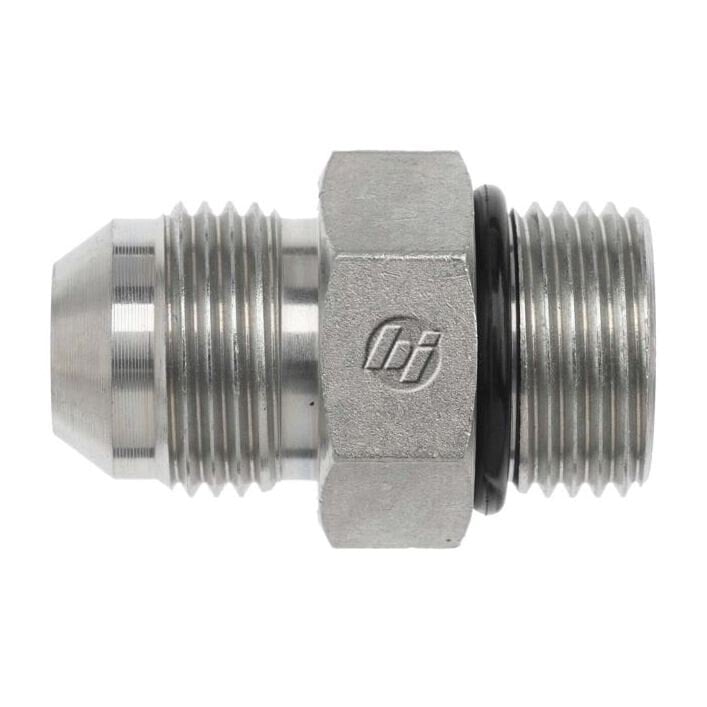

6400-06-05-O (06MJ-05MORB Straight)
6400-06-05-O (06MJ-05MORB Straight)
Regular price
$2.47 USD
Regular price
Sale price
$2.47 USD
Unit price
per

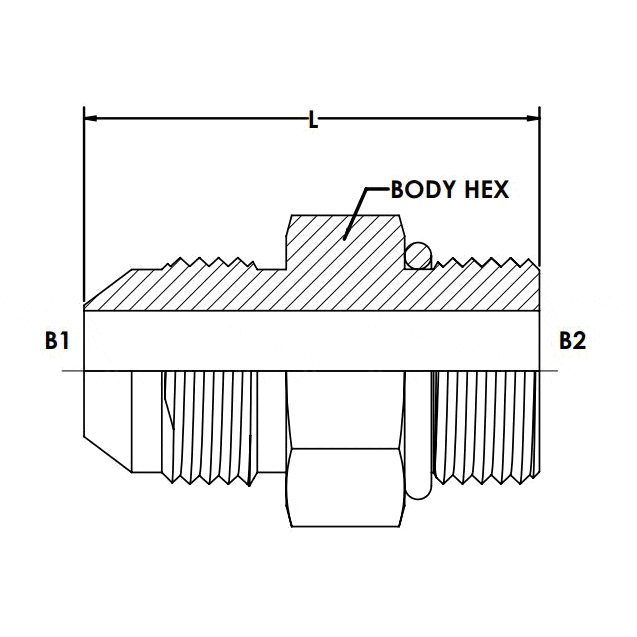

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 9/16-18 |
THREAD B1 DRILL | 0.297 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | MALE SAE O-RING BOSS |
THREAD B2 SIZE | 1/2-20 |
THREAD B2 DRILL | 0.234 |
THREAD B2 SPECIFICATION | SAE J514 |
BODY HEX | 0.687 |
OVERALL LENGTH L | 1.29 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
O-RING / SEAL MATERIAL | NBR |
WEIGHT (LBS) | 0.057 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
