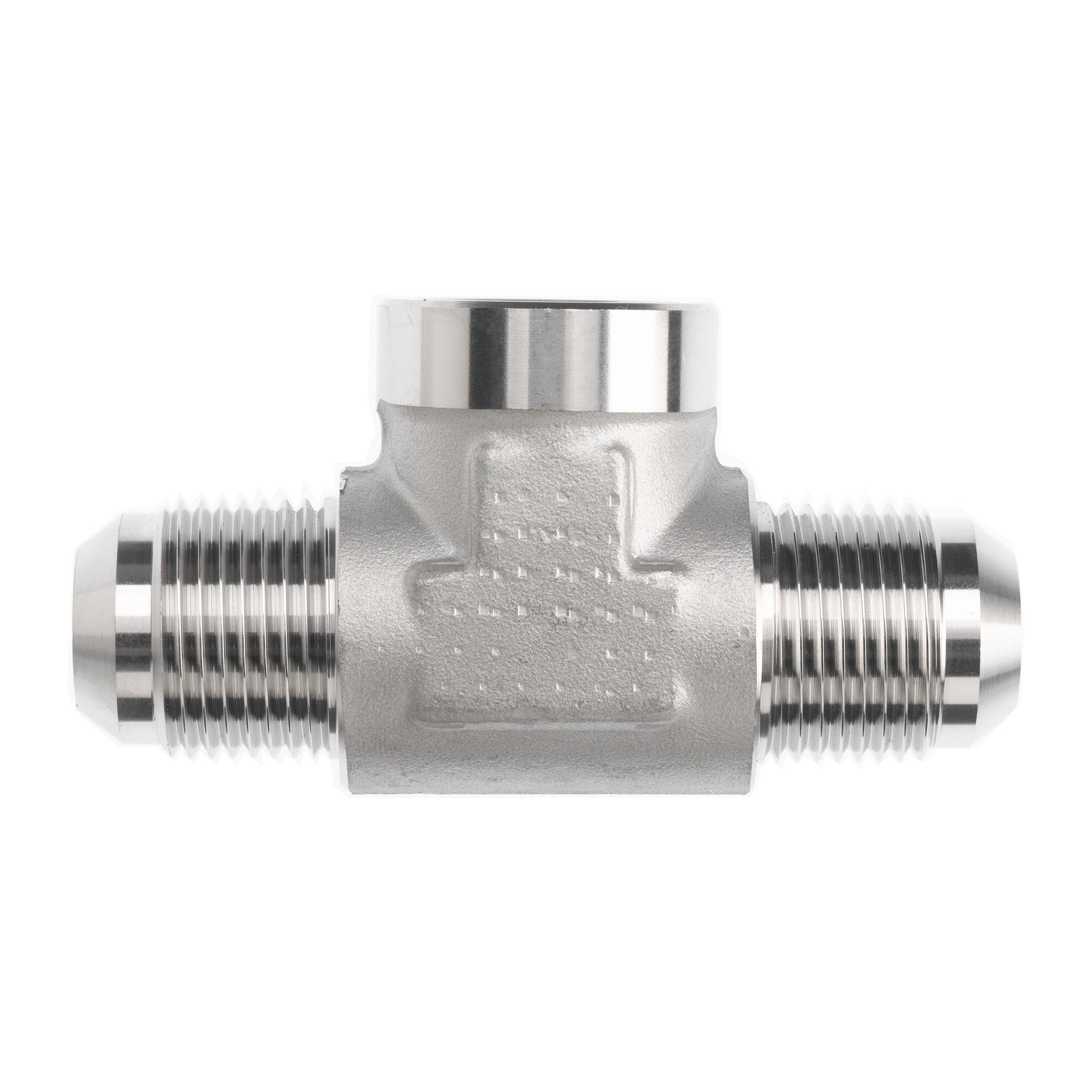

2602-06-06-06-FG (06MJ-06MJ-06FP Branch Tee )
2602-06-06-06-FG (06MJ-06MJ-06FP Branch Tee )
Regular price
$7.71 USD
Regular price
Sale price
$7.71 USD
Unit price
per
Couldn't load pickup availability

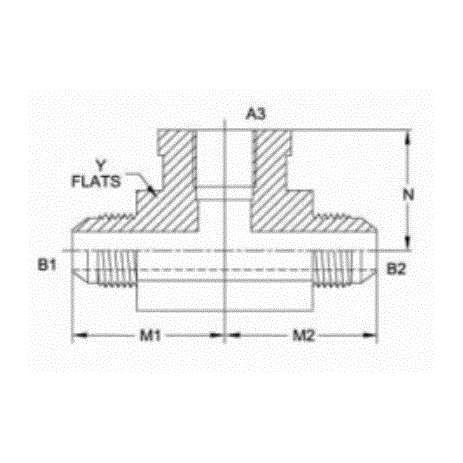

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD A3 TYPE | FEMALE NPTF |
| THREAD A3 SIZE | 3/8-18 |
| THREAD A3 SPECIFICATION | SAE J476 |
| BODY HEX | 0.875 |
| OVERALL LENGTH (M1,M2) | 2.62 |
| OVERALL HEIGHT (N + 1/2 HEX) | 1.458 |
| CENTERLINE LENGTH M1 | 1.31 |
| CENTERLINE LENGTH M2 | 1.31 |
| CENTERLINE LENGTH N | 1.02 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.300 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
