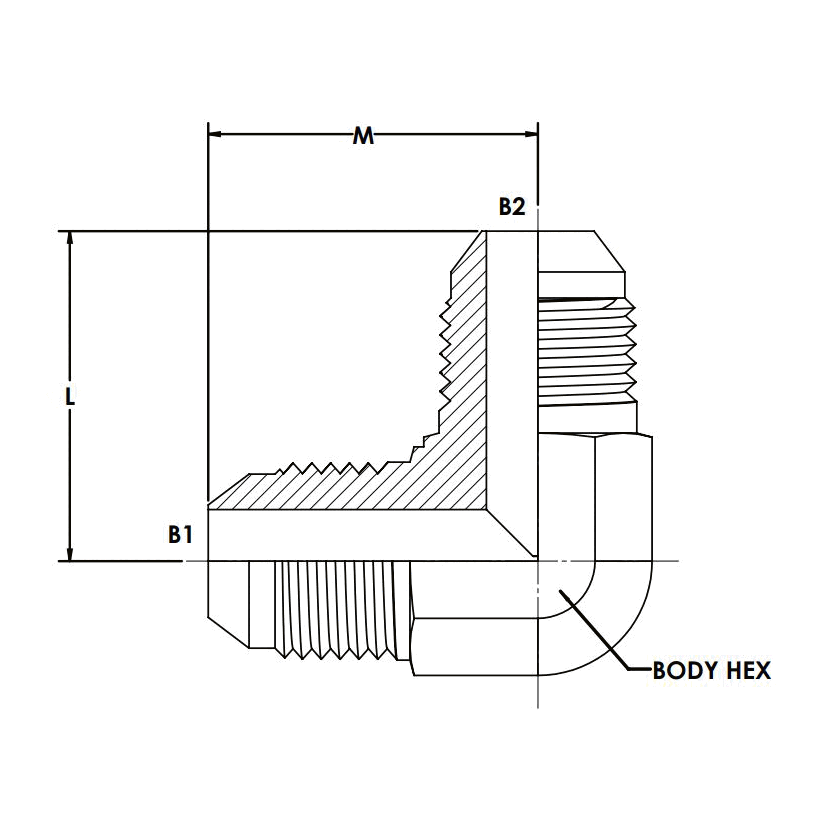

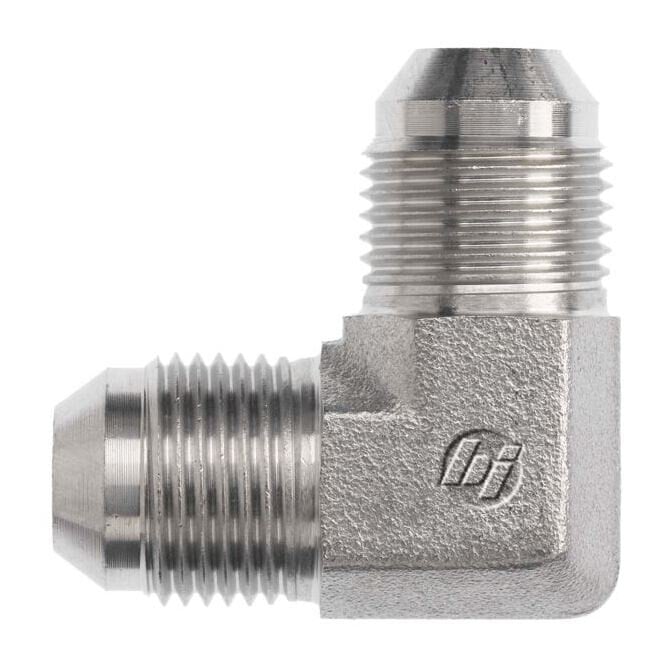

2500-06-06-FG (06MJ-06MJ 90° Elbow Forged)
2500-06-06-FG (06MJ-06MJ 90° Elbow Forged)
Regular price
$2.47 USD
Regular price
Sale price
$2.47 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX | 0.562 |
| CENTERLINE LENGTH M | 1.06 |
| CENTERLINE LENGTH L | 1.06 |
| SHAPE | 90 DEGREE ANGLE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.100 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
