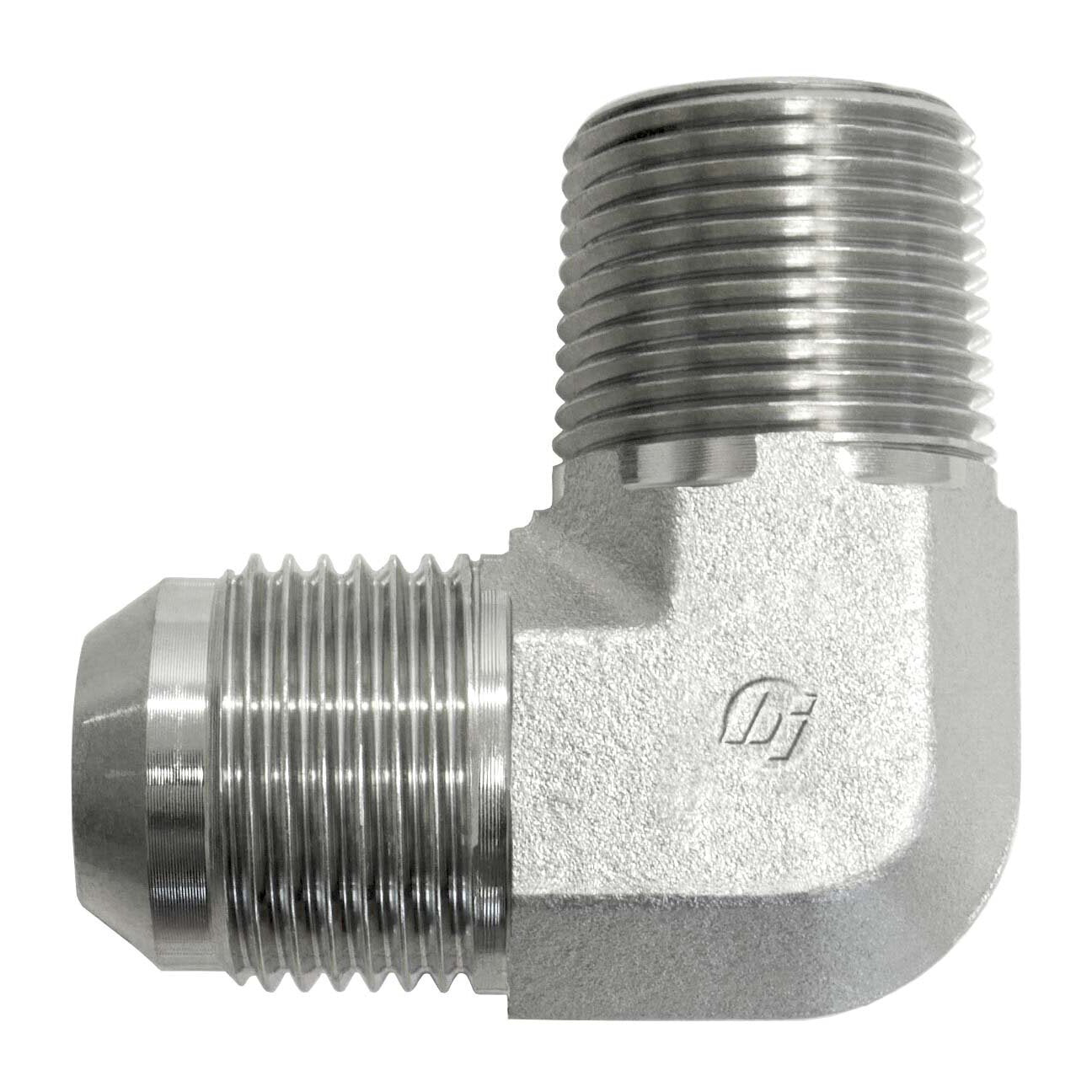

2501-06-08 (06MJ-08MP 90° Elbow Forged)
2501-06-08 (06MJ-08MP 90° Elbow Forged)
Regular price
$3.80 USD
Regular price
Sale price
$3.80 USD
Unit price
per

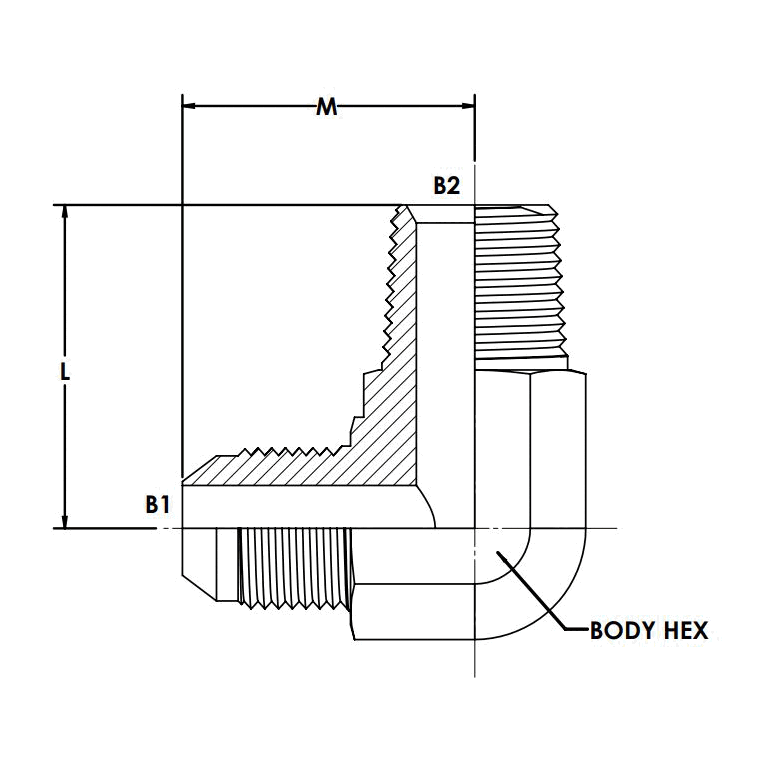

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 9/16-18 |
THREAD B1 DRILL | 0.297 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | MALE NPTF |
THREAD B2 SIZE | 1/2-14 |
THREAD B2 DRILL | 0.531 |
THREAD B2 SPECIFICATION | SAE J476 |
BODY HEX | 0.875 |
CENTERLINE LENGTH M | 1.22 |
CENTERLINE LENGTH L | 1.47 |
SHAPE | 90 DEGREE ANGLE |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STEEL FORGING |
PLATING | CR3 |
WEIGHT (LBS) | 0.256 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
