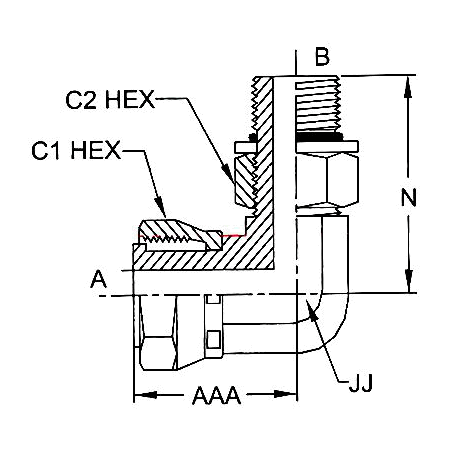

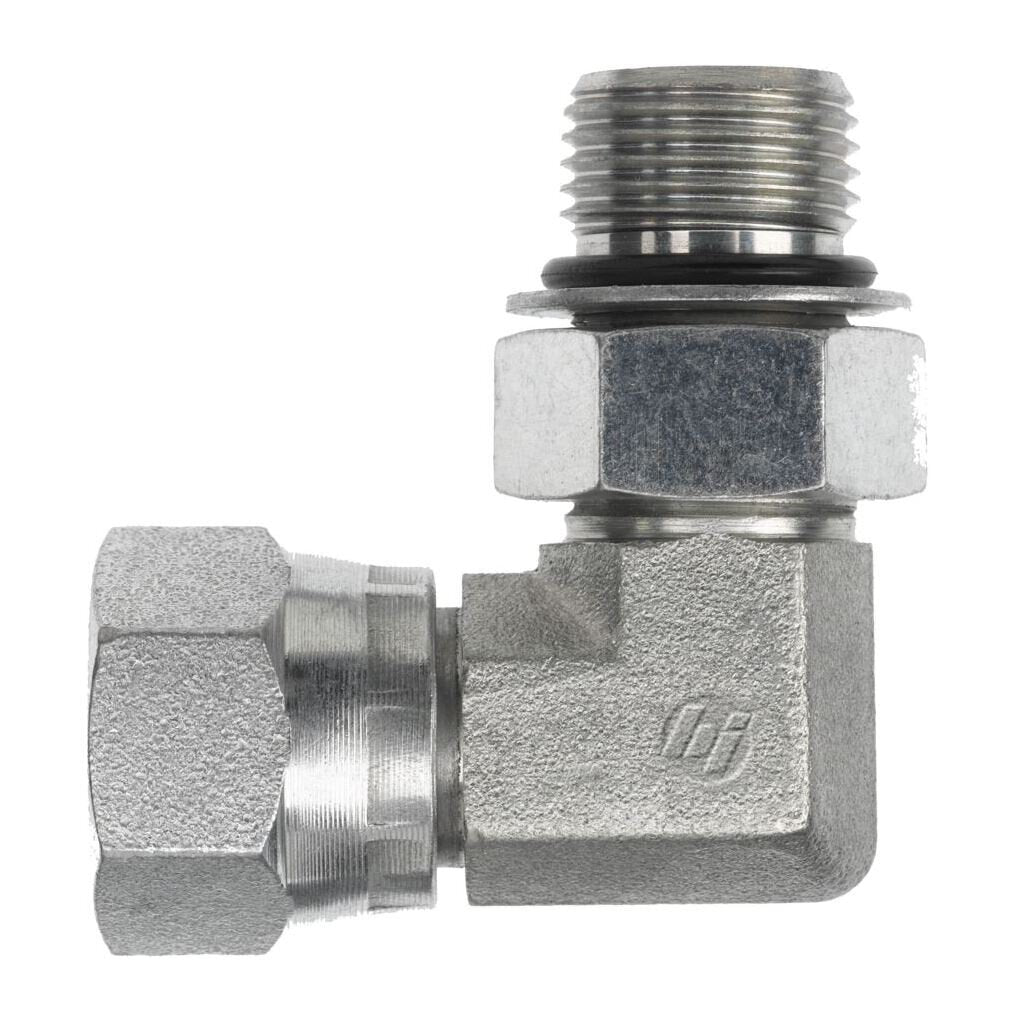

FS6809-08-08-NWO-FG (08FFSS-08MAORB 90° Elbow Forged)

TUBE O.D. 1/2
A THREAD 13/16-16
B THREAD 3/4-16
A HOLE 0.358
B HOLE 0.378
AAA LGTH 1.49
N LGTH 1.60
C1 HEX 0.938
C2 HEX 0.938
JJ FLATS 0.750
MATERIAL STEEL FORGED
