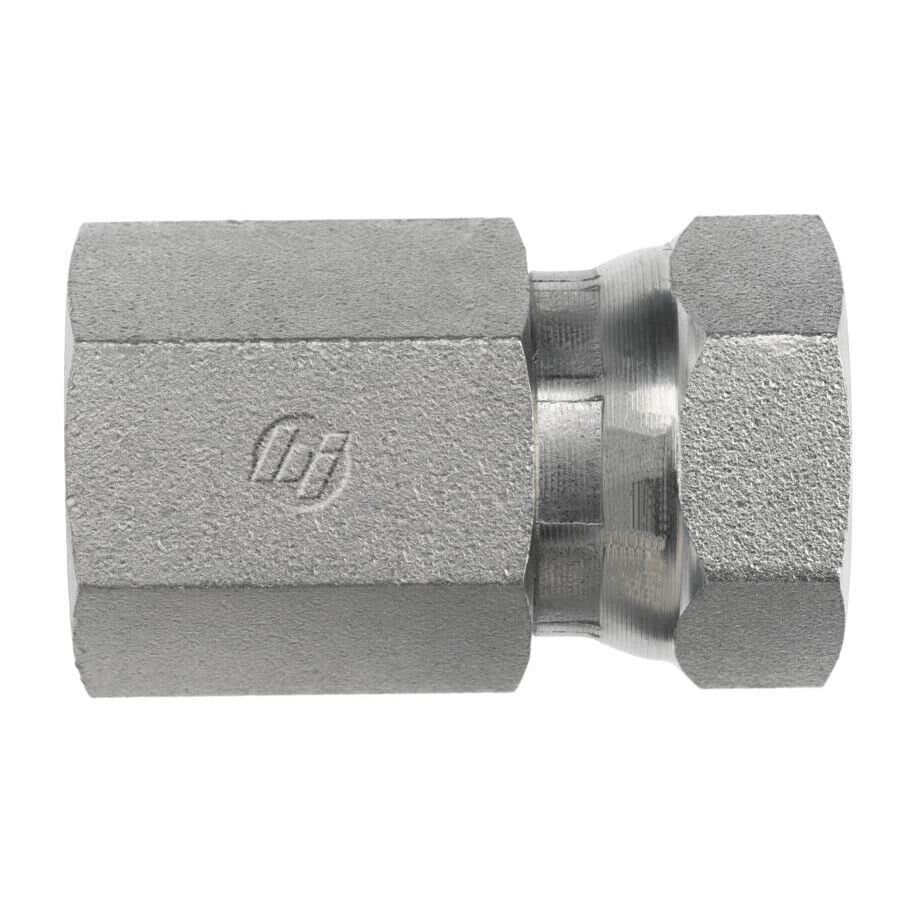

1405-08-06 (08FP-06FPS Straight)
1405-08-06 (08FP-06FPS Straight)
Regular price
$4.52 USD
Regular price
Sale price
$4.52 USD
Unit price
per
THREAD A1 TYPE | FEMALE NPTF |
THREAD A1 SIZE | 1/2-14 |
THREAD A1 SPECIFICATION | SAE J476 |
THREAD A2 TYPE | FEMALE NPSM SWIVEL |
THREAD A2 SIZE | 3/8-18 |
THREAD A2 DRILL | 0.340 |
THREAD A2 SPECIFICATION | SAE J514 |

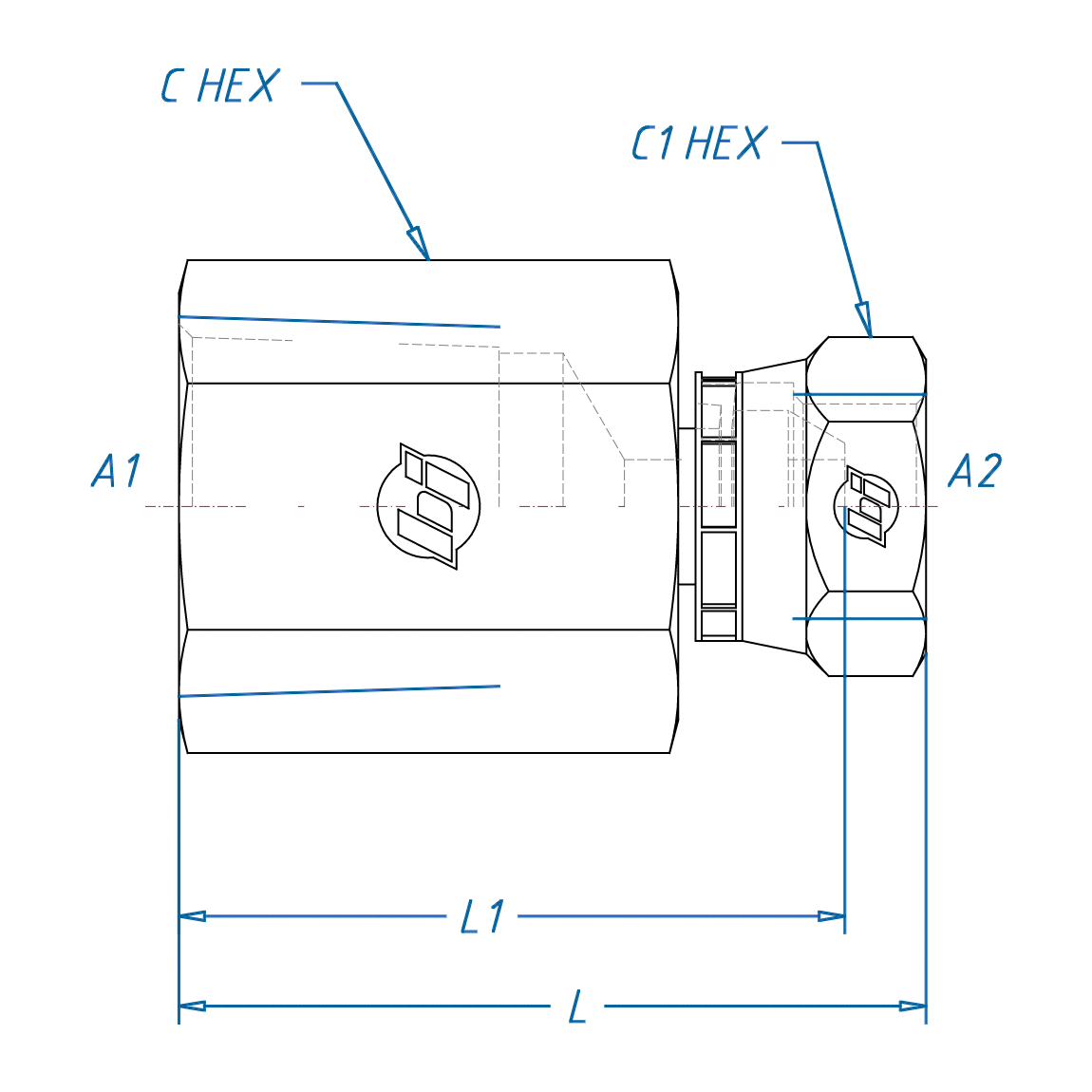

BODY HEX | 1.000 |
C HEX 1 | 0.875 |
OVERALL LENGTH L | 1.66 |
OVERALL LENGTH L1 | 1.45 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 0.208 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
