1405-08-08 (08FP-08FPS Straight)
1405-08-08 (08FP-08FPS Straight)
Regular price
$3.89 USD
Regular price
Sale price
$3.89 USD
Unit price
per
Couldn't load pickup availability

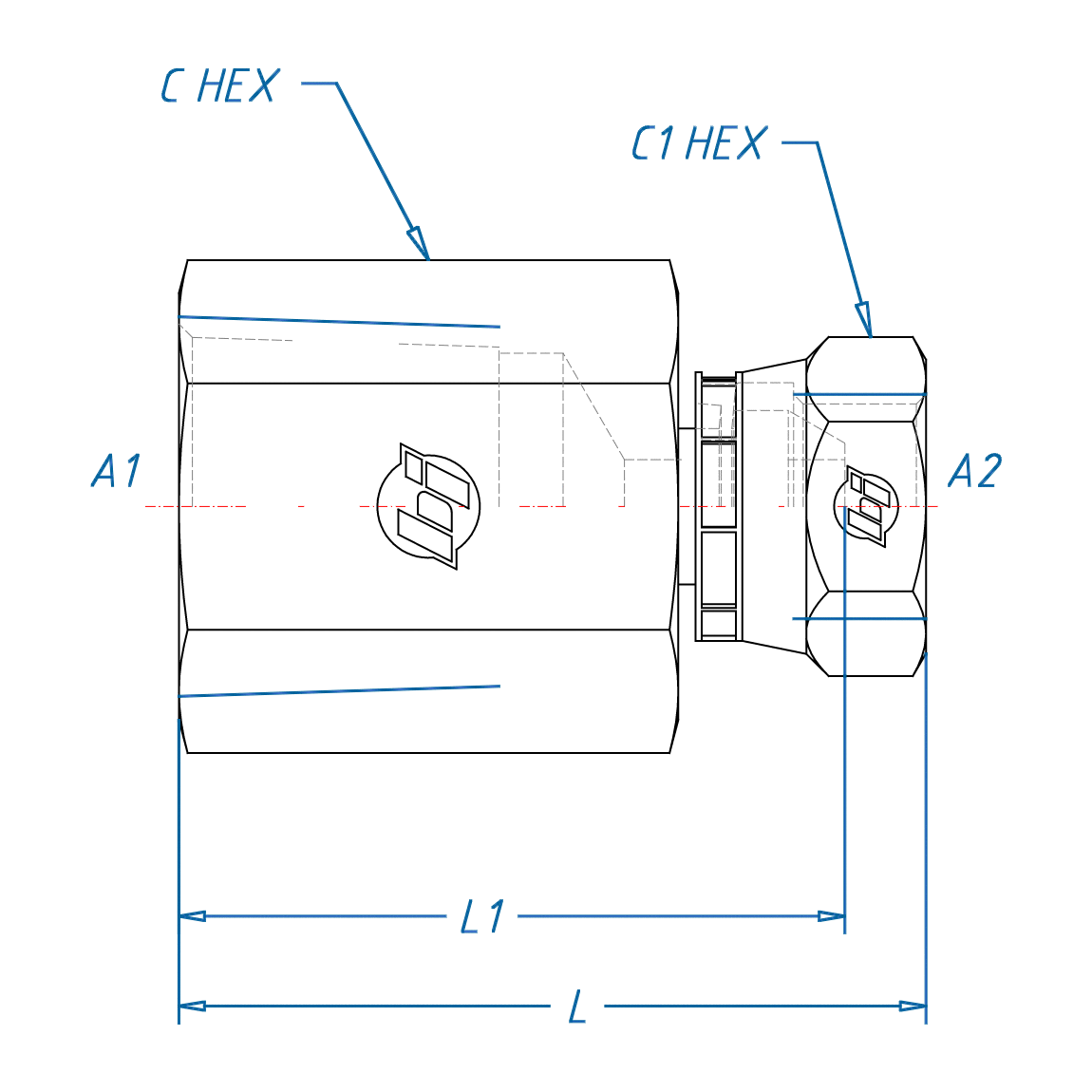

| THREAD A1 TYPE | FEMALE NPTF |
| THREAD A1 SIZE | 1/2-14 |
| THREAD A1 SPECIFICATION | SAE J476 |
| THREAD A2 TYPE | FEMALE NPSM SWIVEL |
| THREAD A2 SIZE | 1/2-14 |
| THREAD A2 DRILL | 0.440 |
| THREAD A2 SPECIFICATION | SAE J514 |
| BODY HEX | 1.000 |
| C HEX 1 | 1.000 |
| OVERALL LENGTH L | 1.84 |
| OVERALL LENGTH L1 | 1.56 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.224 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
