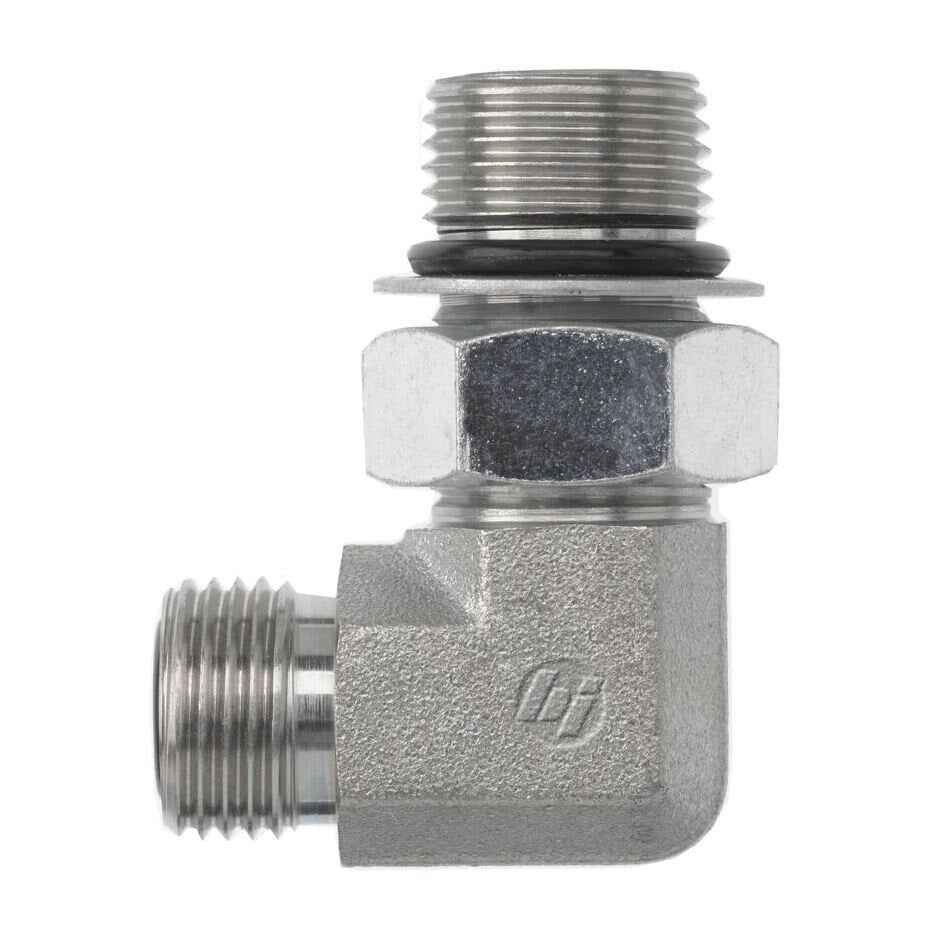

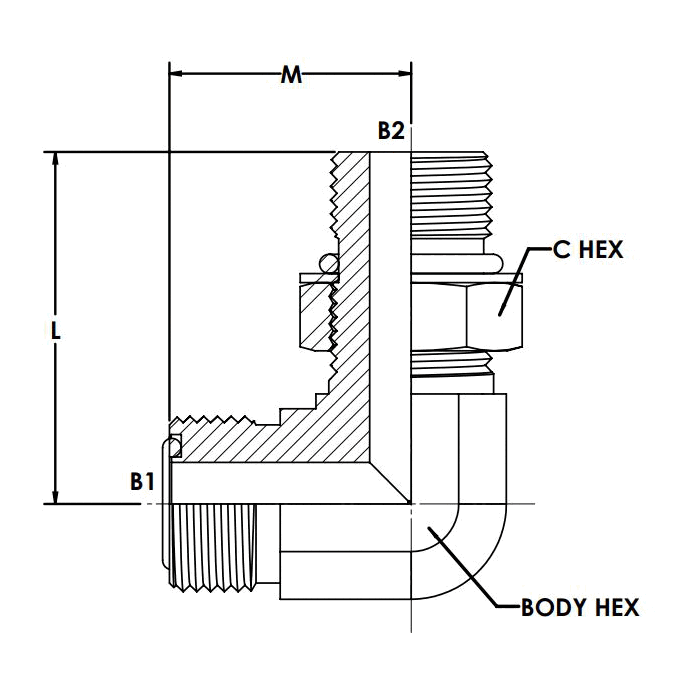

FS6801-08-06-NWO-FG (08MFS-06MAORB 90° Elbow Forged)

TUBE O.D. 1/2
A THREAD 13/16-16
B THREAD 9/16-18
A DRILL 0.378
B DRILL 0.264
M LGTH 1.10
N LGTH 1.44
C HEX 0.750
JJ FLATS 0.750
MATERIAL STEEL FORGED
