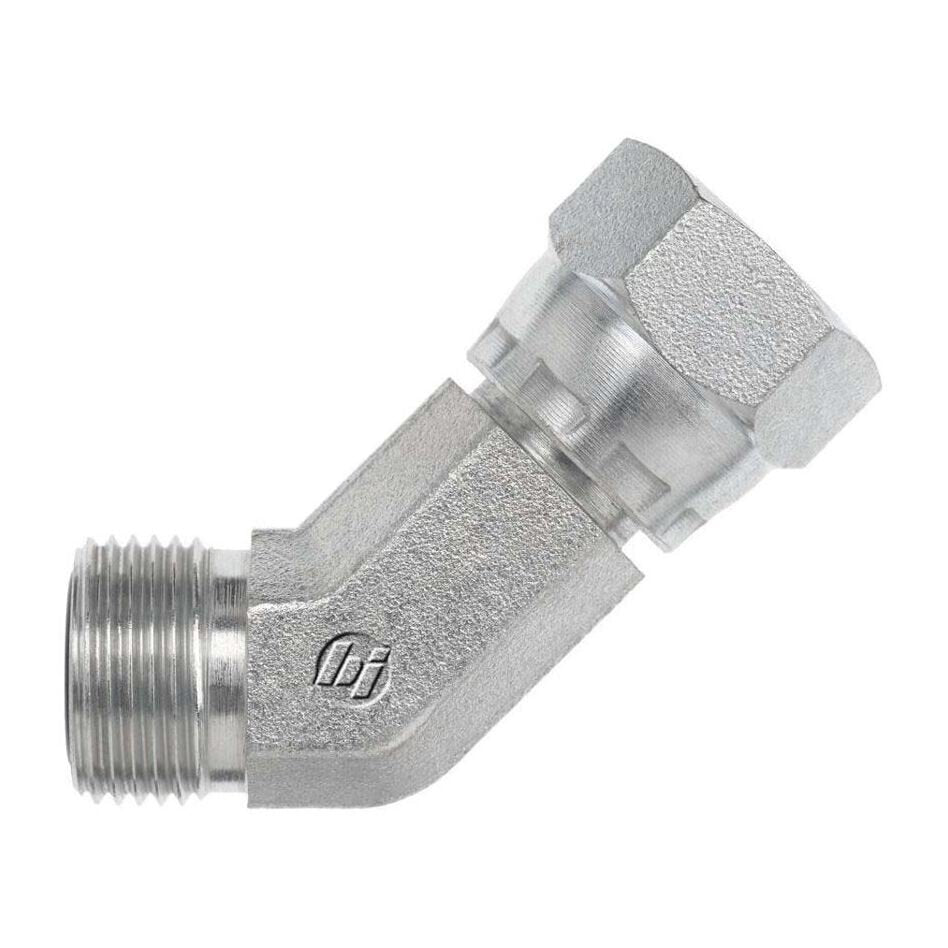

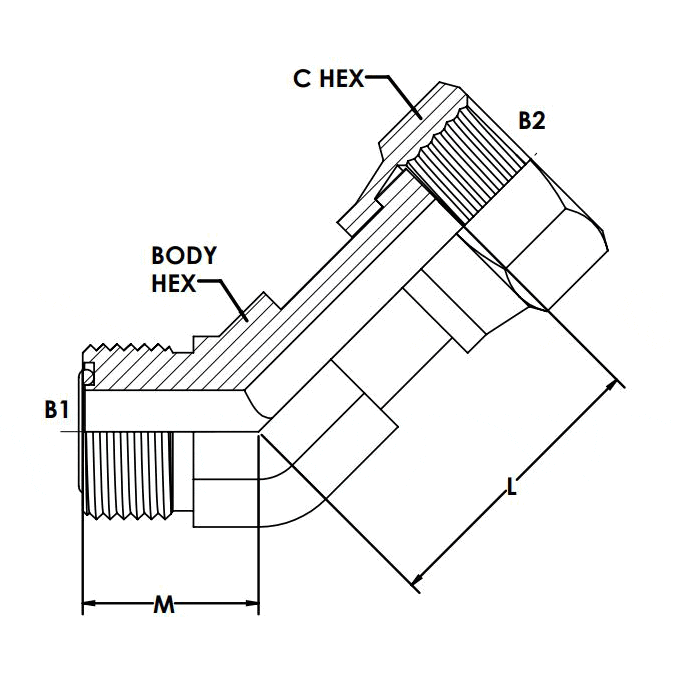

FS6502-08-08-FG (08MFS-08FFSS 45° Elbow Forged)

TUBE O.D. 1/2
A THREAD 13/16-16
B THREAD 13/16-16
A DRILL 0.378
B DRILL 0.358
L1 LGTH 0.80
L2 LGTH 1.32
C HEX 0.938
JJ FLATS 0.75
MATERIAL STEEL FORGED
