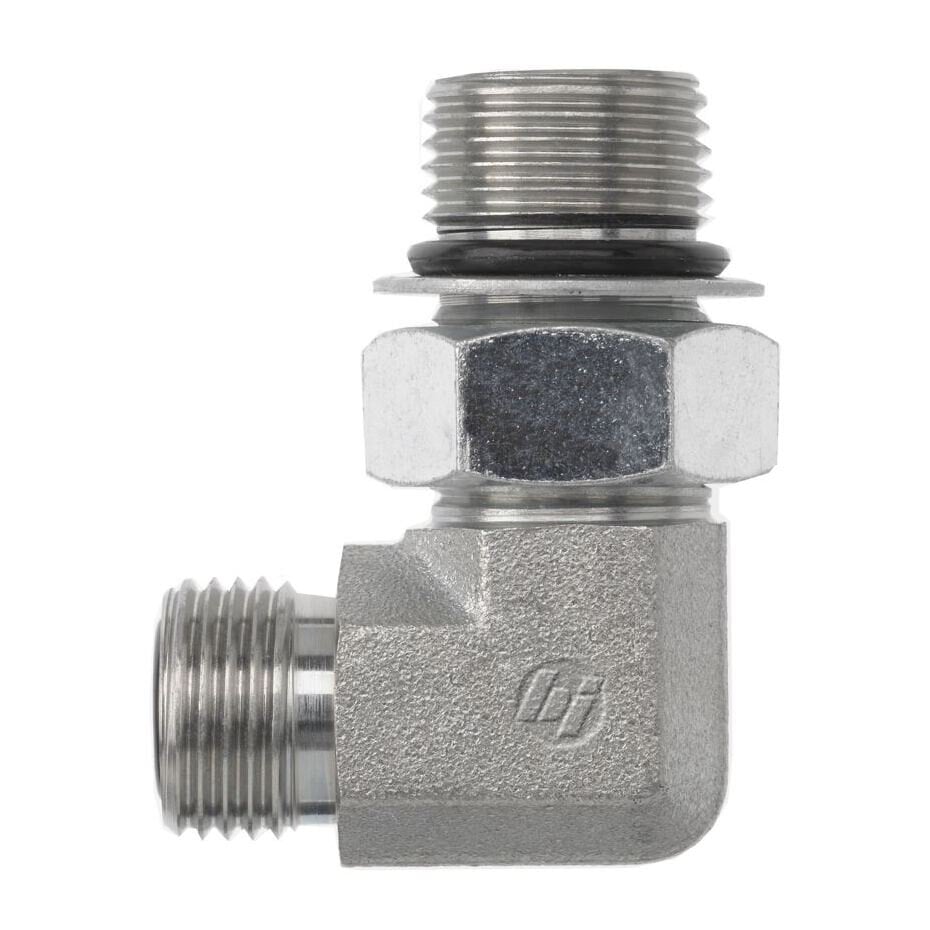

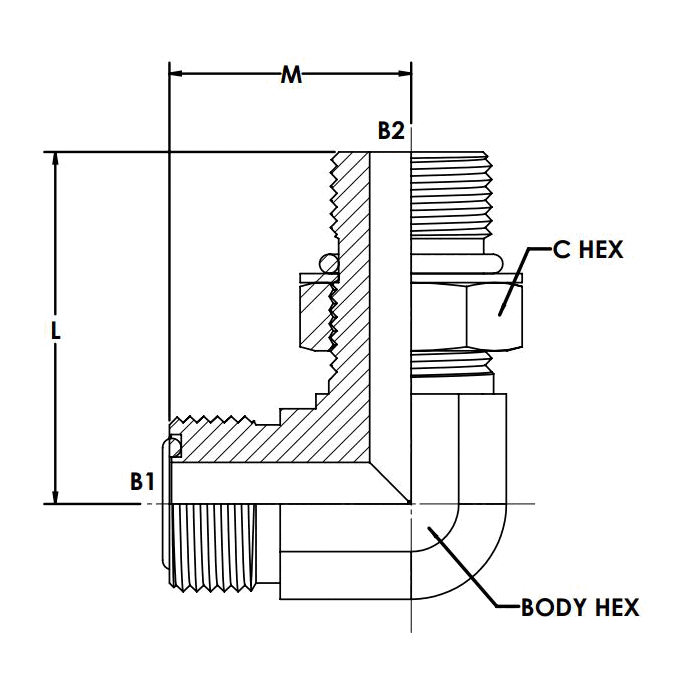

FS6801-08-08-NWO-FG (08MFS-08MAORB 90° Elbow Forged)

TUBE O.D. 1/2
A THREAD 13/16-16
B THREAD 3/4-16
A DRILL 0.378
B DRILL 0.378
M LGTH 1.10
N LGTH 1.60
C HEX 0.938
JJ FLATS 0.750
MATERIAL STEEL FORGED
