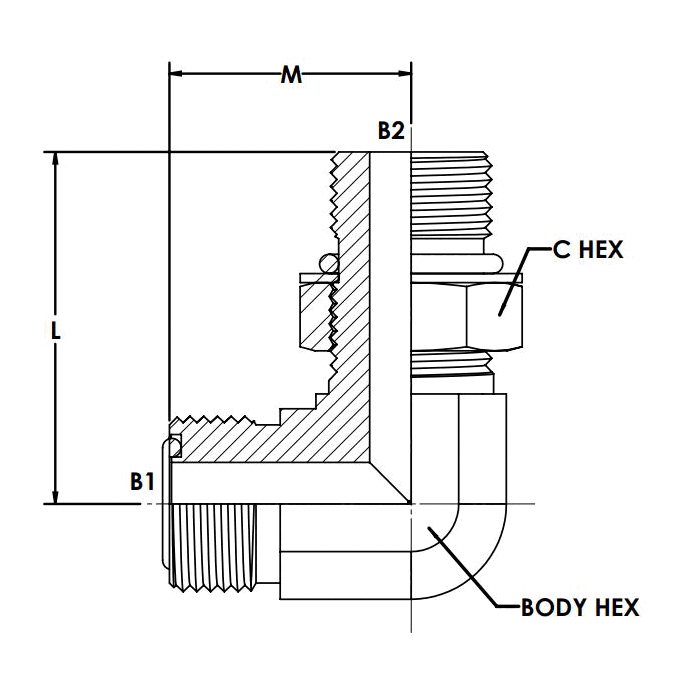

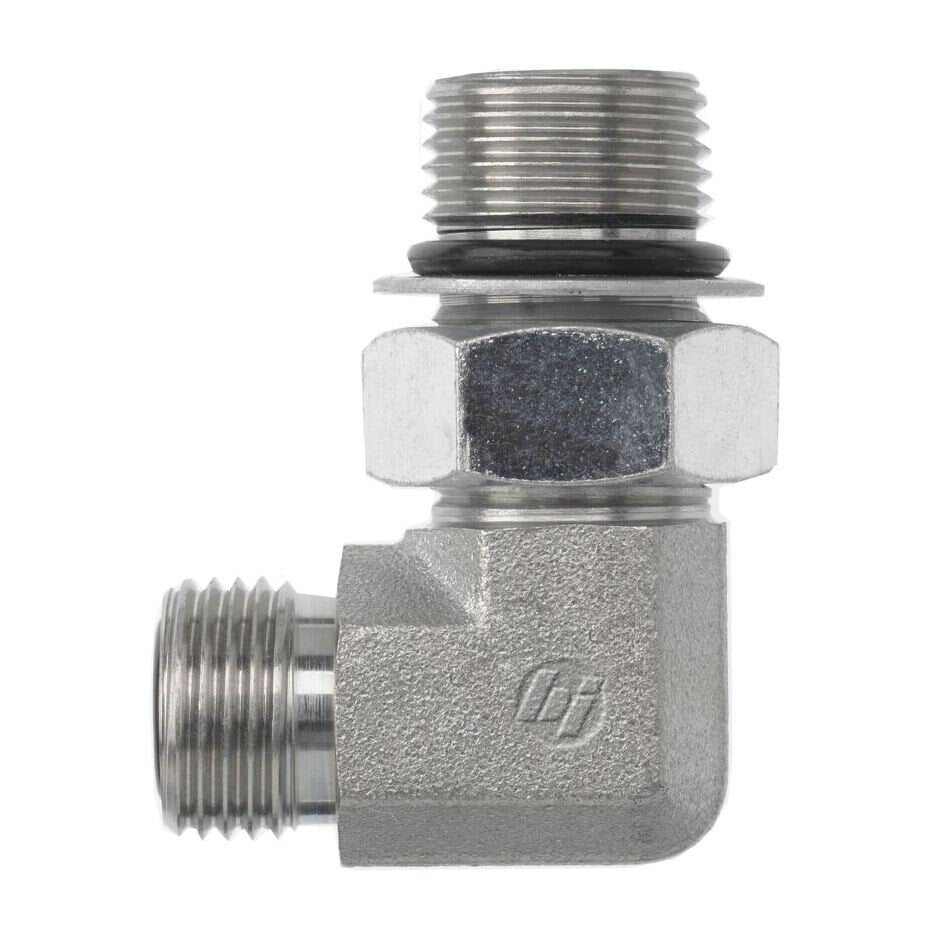

FS6801-08-12-NWO-FG (08MFS-12MAORB 90° Elbow Forged)

TUBE O.D. 1/2
A THREAD 13/16-16
B THREAD 1-1/16-12
A DRILL 0.378
B DRILL 0.609
M LGTH 1.320
N LGTH 2.170
C HEX 1.375
JJ FLATS 1.188
MATERIAL STEEL FORGED
