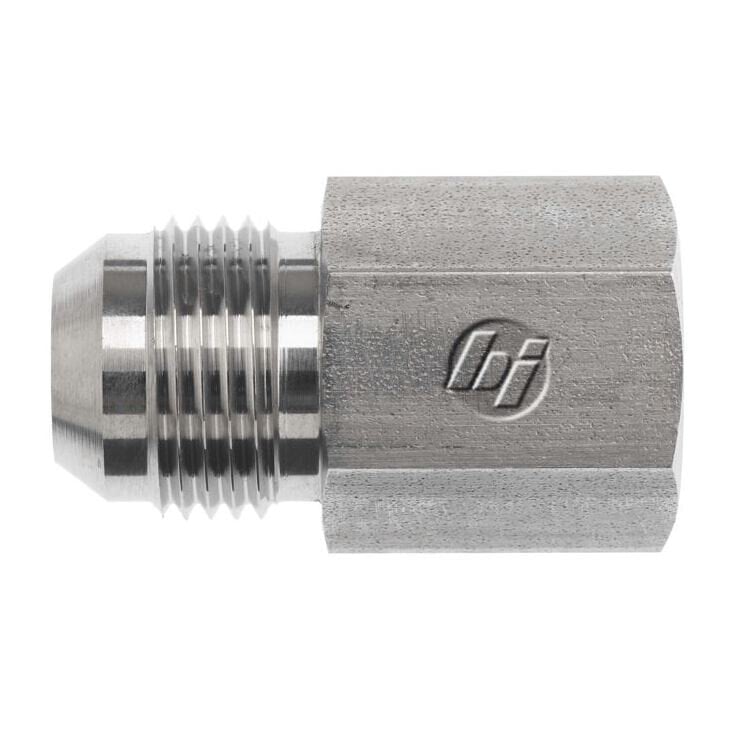

2405-08-04 (08MJ-04FP Straight)
2405-08-04 (08MJ-04FP Straight)
Regular price
$5.03 USD
Regular price
Sale price
$5.03 USD
Unit price
per

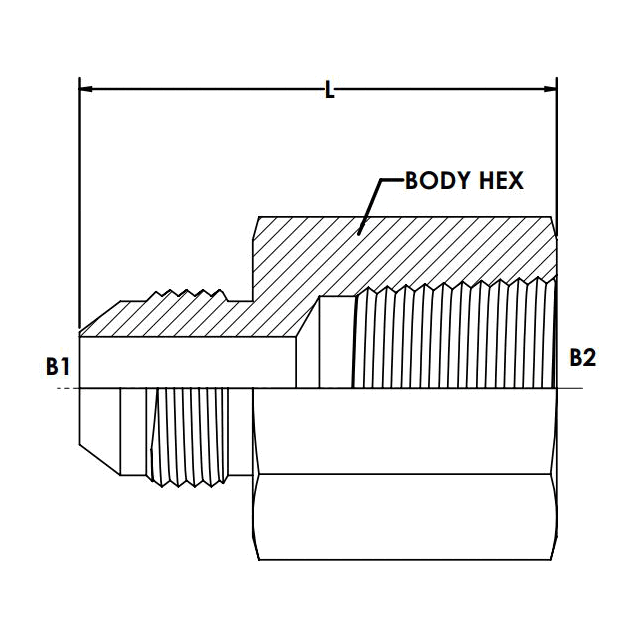

THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 3/4-16 |
THREAD B1 DRILL | 0.391 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | FEMALE NPTF |
THREAD B2 SIZE | 1/4-18 |
THREAD B2 SPECIFICATION | SAE J476 |
BODY HEX | 0.813 |
OVERALL LENGTH 1 | 1.55 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
WEIGHT (LBS) | 0.150 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
