2503-08-06-B (08MJ-06MP 45° Elbow Brass)
2503-08-06-B (08MJ-06MP 45° Elbow Brass)
Regular price
$12.72 USD
Regular price
Sale price
$12.72 USD
Unit price
per
Couldn't load pickup availability

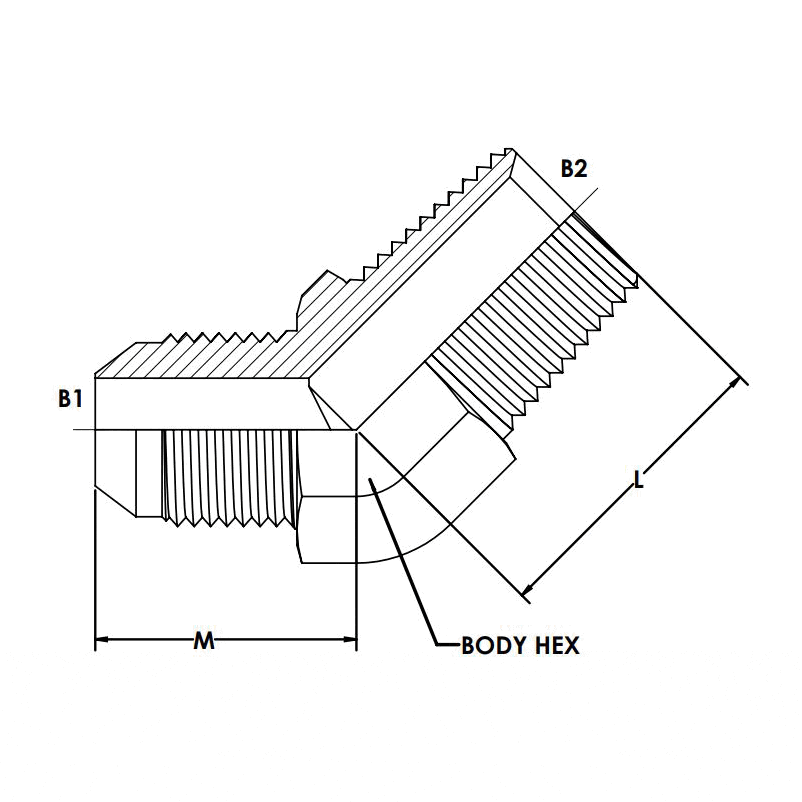

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.750 |
| CENTERLINE LENGTH M | 0.98 |
| CENTERLINE LENGTH L | 0.95 |
| SHAPE | 45 DEGREE ANGLE |
| BODY MATERIAL | BRASS |
| RAW MATERIAL TYPE | BRASS FORGING |
| WEIGHT (LBS) | 0.156 |
