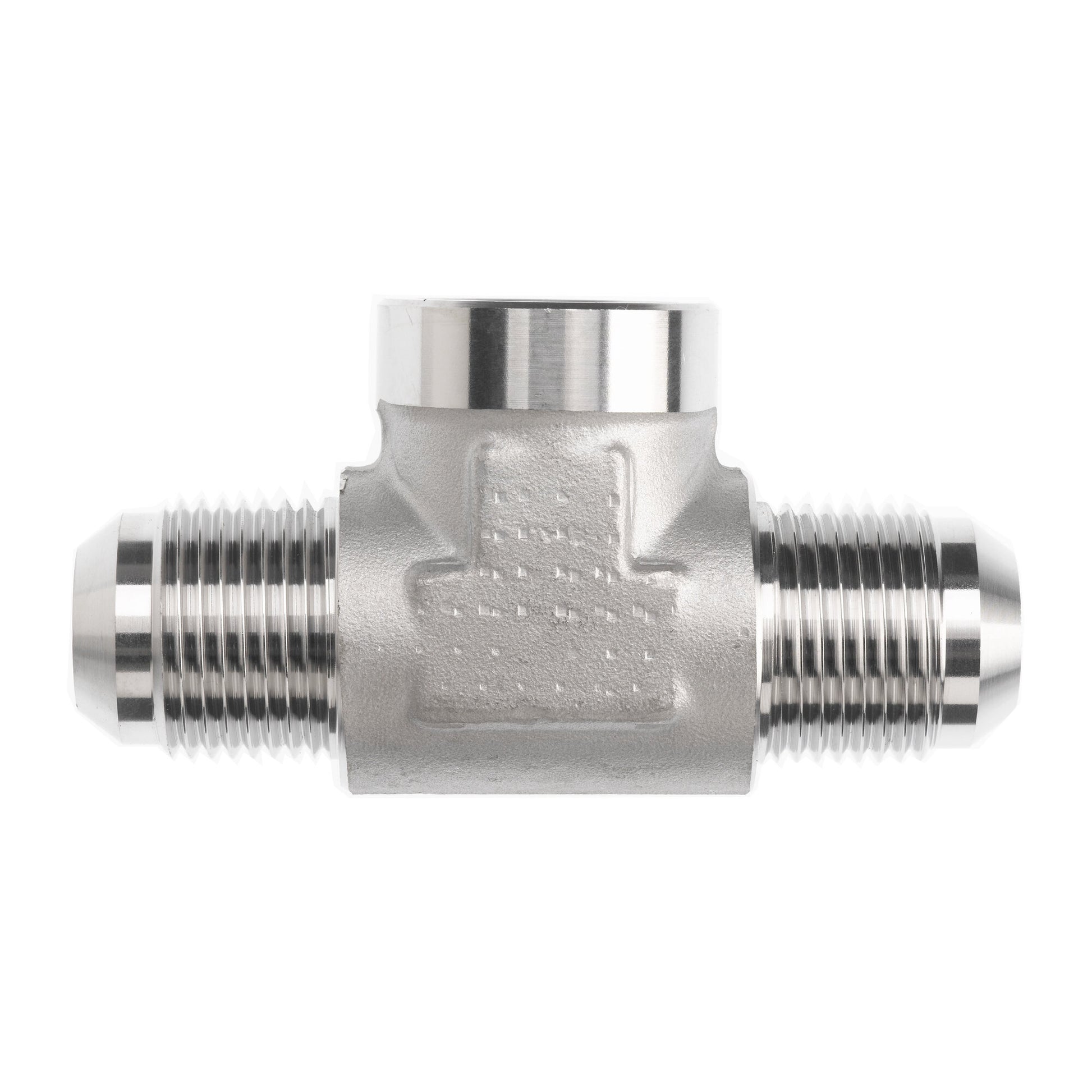

2602-08-08-06 (08MJ-08MJ-06FP Branch Tee)
2602-08-08-06 (08MJ-08MJ-06FP Branch Tee)
Regular price
$18.97 USD
Regular price
Sale price
$18.97 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD A3 TYPE | FEMALE NPTF |
| THREAD A3 SIZE | 3/8-18 |
| THREAD A3 SPECIFICATION | SAE J476 |
| BODY HEX | 0.875 |

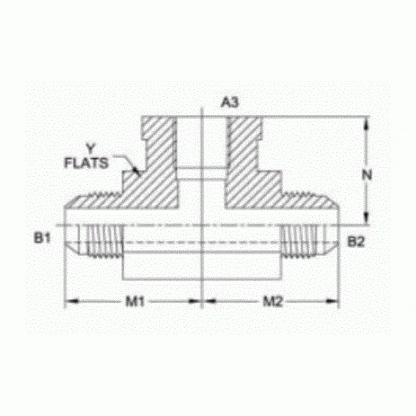

| OVERALL LENGTH (M1,M2) | 2.84 |
| OVERALL HEIGHT (N + 1/2 HEX) | 1.458 |
| CENTERLINE LENGTH M1 | 1.42 |
| CENTERLINE LENGTH M2 | 1.42 |
| CENTERLINE LENGTH N | 1.02 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.338 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
