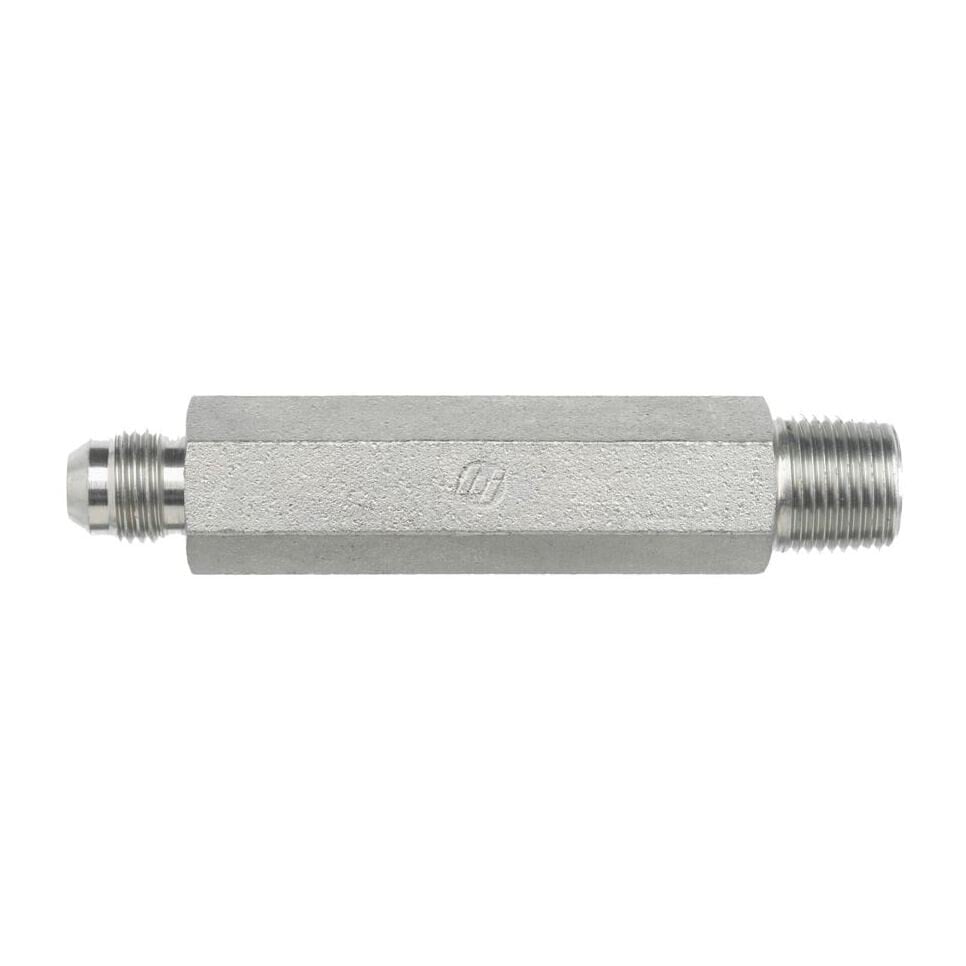

2404-LL-08-08 (08MJ-08MP Straight X-Long ...)
2404-LL-08-08 (08MJ-08MP Straight X-Long ...)
Regular price
$26.82 USD
Regular price
Sale price
$26.82 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.875 |
| OVERALL LENGTH 1 | 4.20 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.480 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
