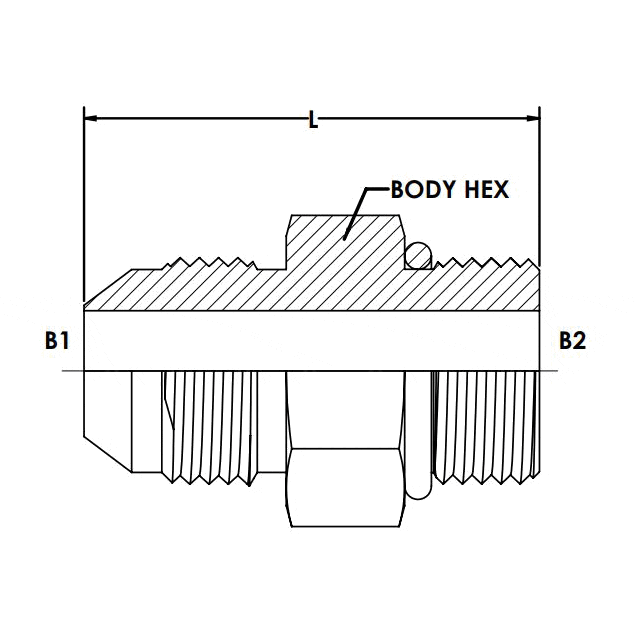

6400-08-12-O (08MJ-12MORB Straight)
6400-08-12-O (08MJ-12MORB Straight)
Regular price
$3.24 USD
Regular price
Sale price
$3.24 USD
Unit price
per
THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
THREAD B1 SIZE | 3/4-16 |
THREAD B1 DRILL | 0.391 |
THREAD B1 SPECIFICATION | SAE J514 |
THREAD B2 TYPE | MALE SAE O-RING BOSS |
THREAD B2 SIZE | 1-1/16-12 |
THREAD B2 DRILL | 0.609 |
THREAD B2 SPECIFICATION | SAE J514 |
BODY HEX | 1.250 |
OVERALL LENGTH L | 1.76 |
SHAPE | STRAIGHT |
BODY MATERIAL | STEEL |
RAW MATERIAL TYPE | STRAIGHT STEEL |
PLATING | CR3 |
O-RING / SEAL MATERIAL | NBR |
WEIGHT (LBS) | 0.297 |
MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
