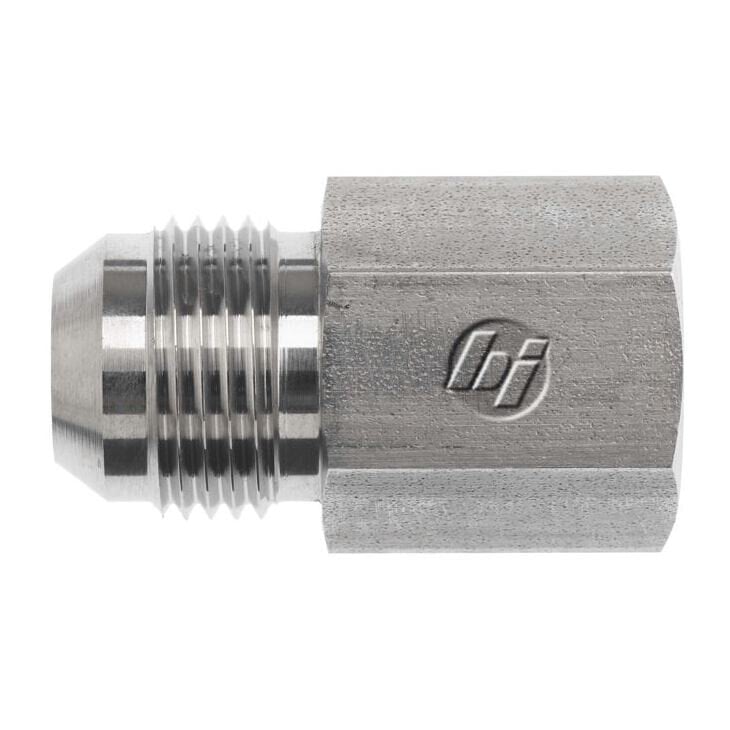

2405-08-16 (08MJ-16FP Straight)
2405-08-16 (08MJ-16FP Straight)
Regular price
$20.25 USD
Regular price
Sale price
$20.25 USD
Unit price
per
Couldn't load pickup availability

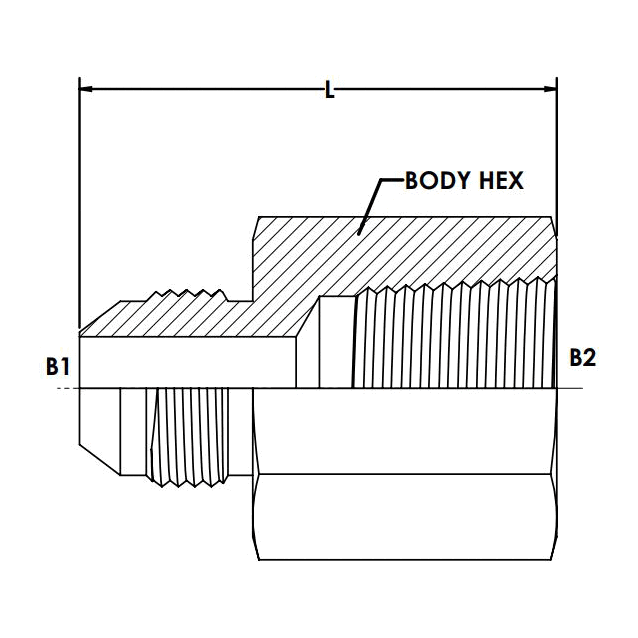

| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX | 1.625 |
| OVERALL LENGTH 1 | 2.10 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.606 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,000 |
