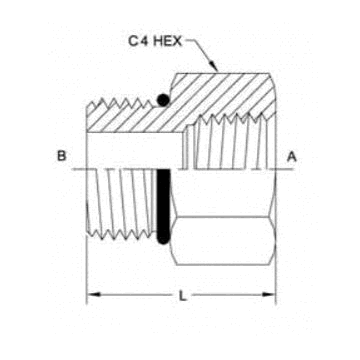

6405-08-06-O (08MORB-06FP Straight)
6405-08-06-O (08MORB-06FP Straight)
Regular price
$2.82 USD
Regular price
Sale price
$2.82 USD
Unit price
per
Couldn't load pickup availability
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD A2 TYPE | FEMALE NPTF |
| THREAD A2 SIZE | 3/8-18 |
| THREAD A2 SPECIFICATION | SAE J476 |
| BODY HEX | 0.875 |
| OVERALL LENGTH L | 1.28 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.133 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
